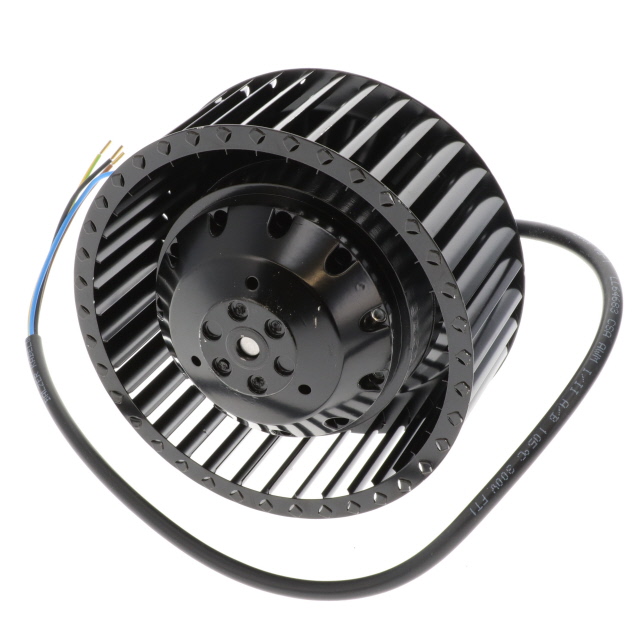

R2E140-AI31-30 - R2E140-AI31-30

R2E140-AI31-30

Active
ebm-papst Inc.

BLOWERS & CENTRIFUGAL FANS AC BACKWARD-CURVED MOTORIZED IMPELLER, 140MM, 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
R2E140-AI31-30 - R2E140-AI31-30

R2E140-AI31-30

Active
ebm-papst Inc.

BLOWERS & CENTRIFUGAL FANS AC BACKWARD-CURVED MOTORIZED IMPELLER, 140MM, 115VAC

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationR2E140-AI31-30
Approval AgencyCSA, UL
Bearing TypeBall
Current Rating (Amps)1.64 A
Fan TypeMotorized Impellers
FeaturesCapacitor, Thermal Overload Protector (TOP)
Ingress ProtectionIP44
Material - BladeSteel
Operating Temperature70 °C
Operating Temperature70 °C
Power (Watts)195 W
RPM2200 RPM
Size / Dimension [diameter]140 mm
Termination4 Wire Leads with Splice Terminals
Voltage - Rated115 VAC
Weight2.4 lbs
Weight1.1 kg
Width [y]72 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 211.78
10$ 195.06
25$ 182.52
50$ 179.74
SagerN/A 1$ 215.55
2$ 209.02
5$ 202.87
10$ 197.07
20$ 191.60
50$ 175.74
100$ 171.12

Description

General part information

R2E140 Series

Blowers & Centrifugal Fans AC Backward-Curved Motorized Impeller, 140mm, 115VAC

Documents

Technical documentation and resources

Datasheet

Datasheet
