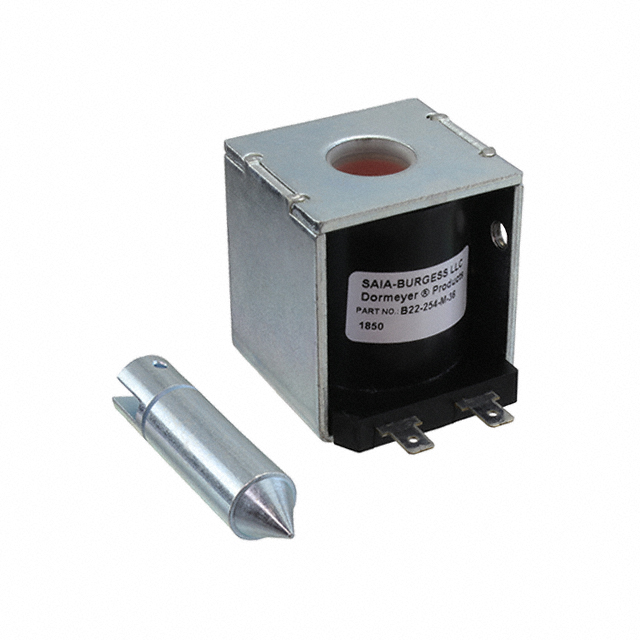

OPEN FRAME SOLENOID B22 - 12 VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B22-254-M-36
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
OPEN FRAME SOLENOID B22 - 12 VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B22-254-M-36 |
|---|---|
| DC Resistance (DCR) | 14.6 Ohm |
| Diameter - Shaft [diameter] | 12.7 mm |
| Diameter - Shaft [diameter] | 0.5 in |
| Mounting Type | Chassis Mount |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 40.89 mm |
| Size / Dimension [x] | 1.61 " |
| Size / Dimension [y] | 33.27 mm |
| Size / Dimension [y] | 1.31 " |
| Size / Dimension [z] | 1.47 in |
| Size / Dimension [z] | 37.34 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Open Frame (Pull) |
