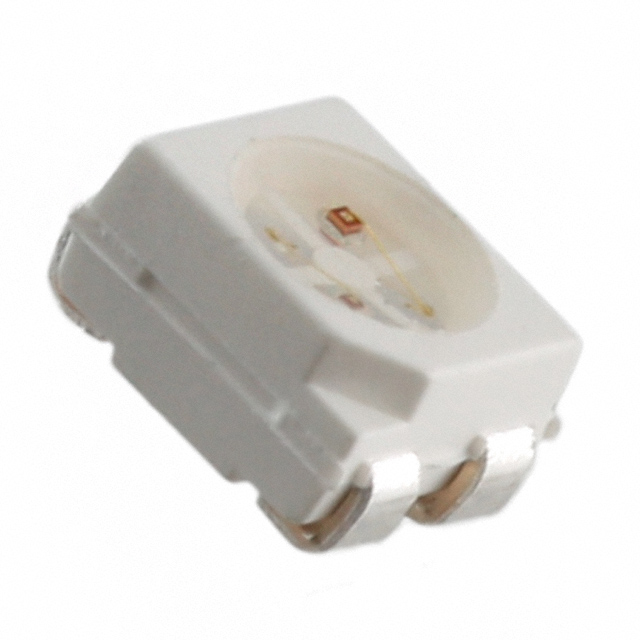

HSMF-A205-A00J1
ActiveBroadcom Limited
LED GREEN/ORANGE CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
HSMF-A205-A00J1
ActiveBroadcom Limited
LED GREEN/ORANGE CLEAR 4PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-A205-A00J1 |
|---|---|
| Color | Orange, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.2 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 16 mcd, 8 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2.2 V |
| Wavelength - Dominant | 560 nm, 602 nm |
| Wavelength - Peak [custom] | 600 nm, 558 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 10 | $ 0.58 | |||
| 100 | $ 0.38 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.88 | ||
| 10 | $ 0.58 | |||
| 100 | $ 0.38 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 2000 | $ 0.28 | ||
| 6000 | $ 0.27 | |||
| 10000 | $ 0.26 | |||
Description
General part information
HSMF-A205 Series
Green, Orange 560nm Green, 602nm Orange LED Indication - Discrete 2.2V Green, 2.2V Orange 4-PLCC
