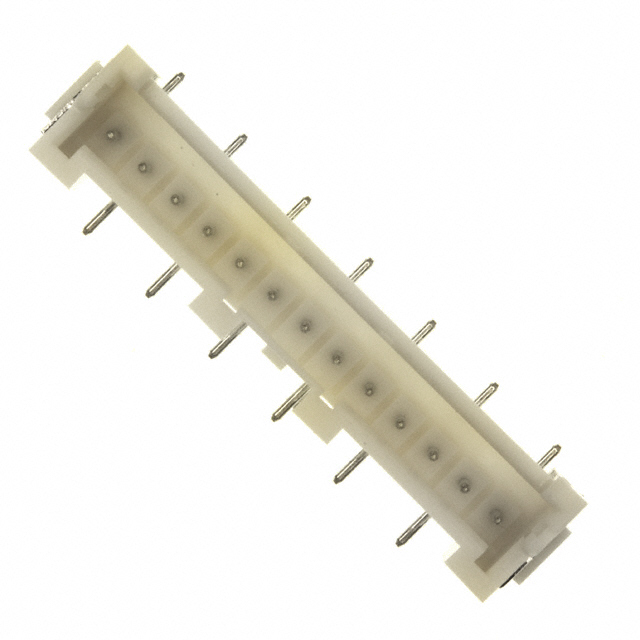

BM13B-XASS-TF(LF)(SN)
ObsoleteJST Sales America Inc.
CONN HEADER SMD 13POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
BM13B-XASS-TF(LF)(SN)
ObsoleteJST Sales America Inc.
CONN HEADER SMD 13POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM13B-XASS-TF(LF)(SN) |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.37 in |
| Insulation Height | 9.4 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | 11.9 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 13 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BM13B-XA Series
Connector Header Surface Mount 13 position 0.098" (2.50mm)
