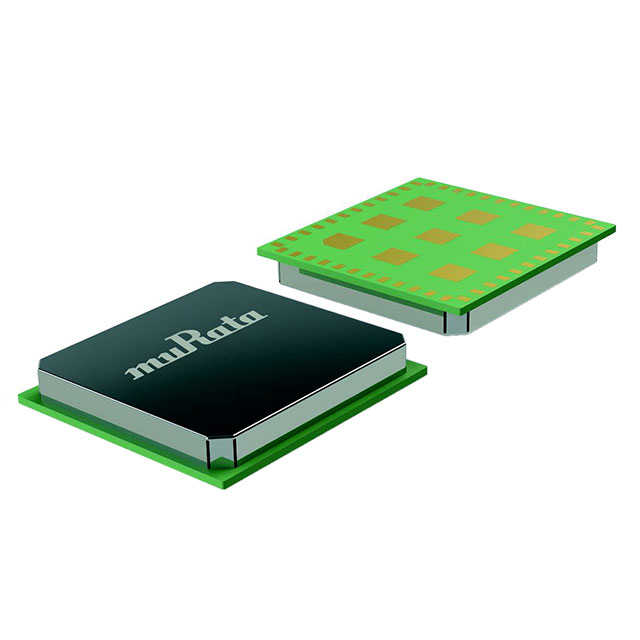

CMWX1ZZABZ-091
ActiveMurata Power Solutions Inc.
RF TXRX MOD ISM<1GHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMWX1ZZABZ-091
ActiveMurata Power Solutions Inc.
RF TXRX MOD ISM<1GHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMWX1ZZABZ-091 |
|---|---|
| Current - Receiving | 23 mA |
| Current - Transmitting | 106 mA |
| Frequency | 915 MHz, 868 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 14 dBm |
| Protocol | LoRa™ |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -133 dBm |
| Serial Interfaces | UART, SPI, USB, I2C |
| Utilized IC / Part | SX1276 |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 18.17 | |
| 10 | $ 16.44 | |||
| 25 | $ 15.14 | |||
| 100 | $ 13.84 | |||
| 250 | $ 12.98 | |||
| 500 | $ 12.11 | |||
| Digi-Reel® | 1 | $ 18.17 | ||
| 10 | $ 16.44 | |||
| 25 | $ 15.14 | |||
| 100 | $ 13.84 | |||
| 250 | $ 12.98 | |||
| 500 | $ 12.11 | |||
| Tape & Reel (TR) | 1000 | $ 11.51 | ||
Description
General part information
CMWX1ZZABZ Series
General ISM < 1GHz LoRa™ Transceiver Module 868MHz, 915MHz Surface Mount
