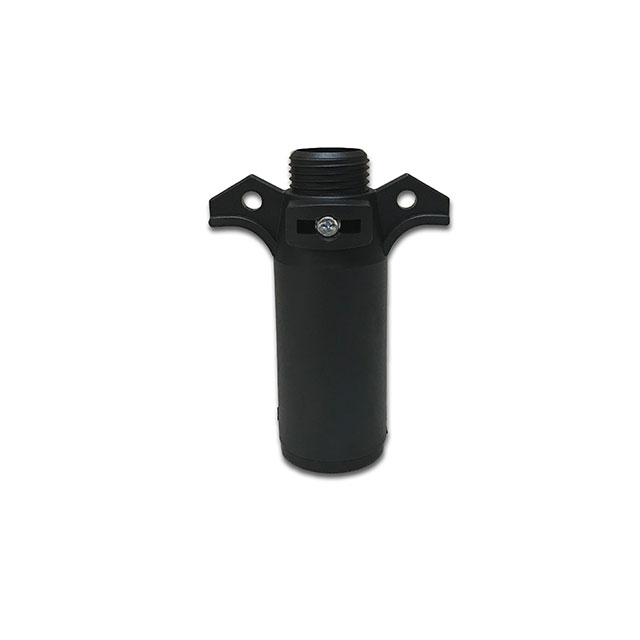

TC7-P2-N
ActiveSwitch Components
CONN PLUG FMALE 7POS SET SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC7-P2-N
ActiveSwitch Components
CONN PLUG FMALE 7POS SET SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC7-P2-N |
|---|---|
| Applications | Automotive |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Fastening Type | Push-Pull |
| Features | Cable Clamp |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions [custom] | 1 |
| Number of Positions [custom] | 6 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Set Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.36 | |
| 10 | $ 9.53 | |||
| 25 | $ 8.70 | |||
| 50 | $ 7.62 | |||
| 100 | $ 7.05 | |||
| 250 | $ 6.49 | |||
| 500 | $ 5.95 | |||
| 1000 | $ 5.48 | |||
Description
General part information
TC7-P2 Series
7 (6 + PE) Position Circular Connector Plug, Female Sockets Set Screw
