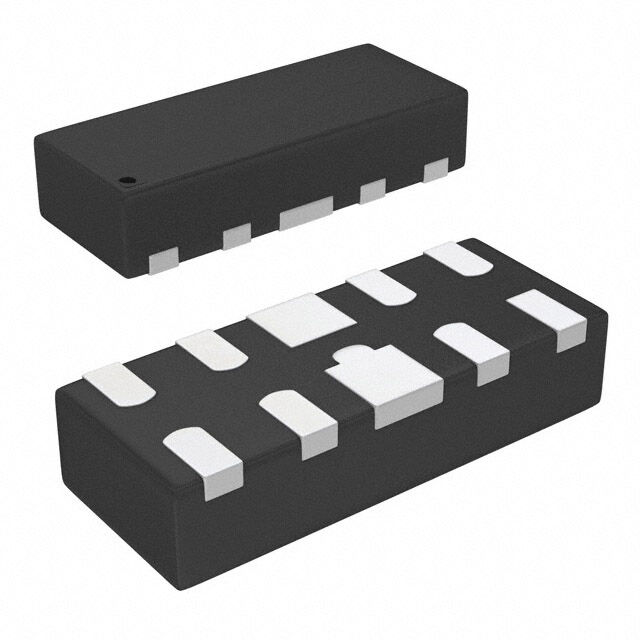

AOZ8829ADI-05

Active

Alpha & Omega Semiconductor Inc.

TVS DIODE 3.3VWM 6VC 10DFN

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

TVS DIODE 3.3VWM 6VC 10DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ8829ADI-05

Applications	General Purpose
Capacitance @ Frequency	0.69 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-UFDFN
Power Line Protection	False
Supplier Device Package	10-DFN (2.5x1)
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	5 V
Voltage - Clamping (Max) @ Ipp [Max]	6 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Capacitance @ Frequency	Applications	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Unidirectional Channels [custom]	Package / Case	Voltage - Breakdown (Min) [Min]
Alpha & Omega Semiconductor Inc. AOZ8829DI-03	0.6 pF	General Purpose	Surface Mount	3 V	3.3 V	Zener	-40 °C	125 ¯C	5 A	0.6	3-DFN	1	4	3-UFDFN
Alpha & Omega Semiconductor Inc. AOZ8829ADI-03	0.55 pF	HDMI USB	Surface Mount	6 V	3.3 V	Steering	-40 °C	125 ¯C	16 A		10-DFN (2.5x1)		4	10-UFDFN	5 V
Alpha & Omega Semiconductor Inc. AOZ8829ADI-05	0.69 pF	General Purpose	Surface Mount	6 V	3.3 V	Steering	-40 °C	125 °C			10-DFN (2.5x1)		4	10-UFDFN	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6V Clamp Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
