131-3801-391

Active

Cinch Connectivity Solutions Johnson

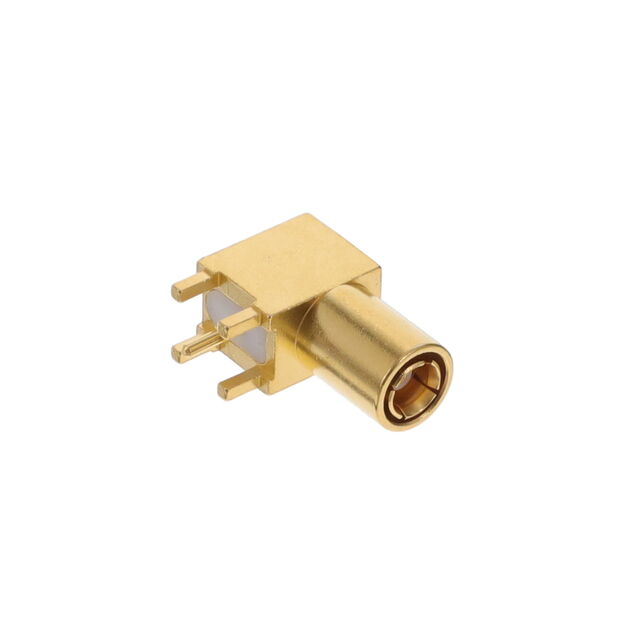

CONN SMB PLUG R/A 50OHM PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

CONN SMB PLUG R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	131-3801-391

Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Frequency - Max [Max]	Number of Ports	Mounting Type	Impedance	Connector Style	Dielectric Material	Connector Type	Insertion Loss	Voltage Rating	Shield Termination
Cinch Connectivity Solutions Johnson 131-3801-391	500	-65 ░C	165 °C	Solder	Snap-On	4 GHz	1	Through Hole Right Angle	50 Ohms	SMB	Polytetrafluoroethylene (PTFE)	Female Socket Plug	0.6 dB	335 V	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Through Hole, Right Angle Solder
