Q8F7BZZRYG02E

Active

APEM

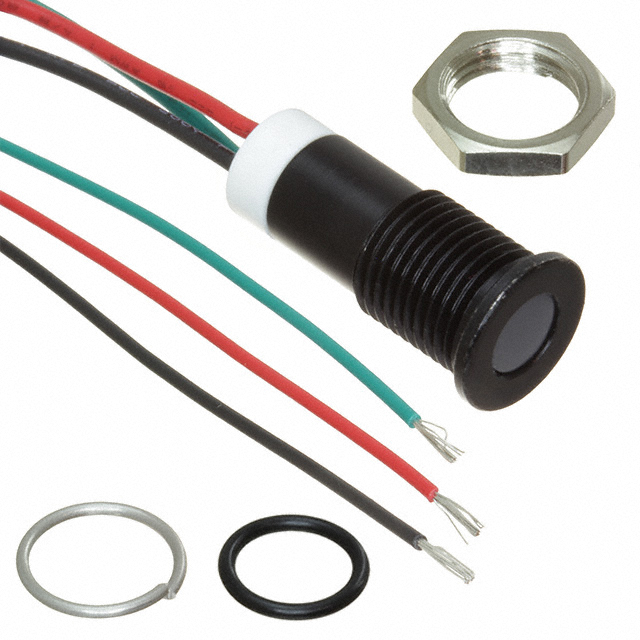

LED INDICATOR 8MM FLUSH TRI COLO

Search across all available documentation for this part.

Active

APEM

LED INDICATOR 8MM FLUSH TRI COLO

Technical Specifications

Parameters and characteristics for this part

Specification	Q8F7BZZRYG02E

Ingress Protection	IP67
Lamp Color	Green, Yellow, Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Transparency	Diffused
Millicandela Rating [custom]	10 mcd
Millicandela Rating [custom]	15 mcd
Millicandela Rating [custom]	6 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	2 V

Part	Lamp Color	Lens Size	Lens Size	Lens Transparency	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage	Panel Cutout Shape	Ingress Protection	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Termination Style	Viewing Angle	Type
APEM Q8F7BZZRYG02E	Green Red Yellow	T-1 3/4	5 mm	Diffused	10 mcd	15 mcd	6 mcd	2 V	Round	IP67	0.31 in	7.87 mm	Wire Leads - 7.87" (200.00mm)	100 °	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green, Red, Yellow Diffused 100° 2V 20mA Wire Leads - 7.87" (200.00mm)
