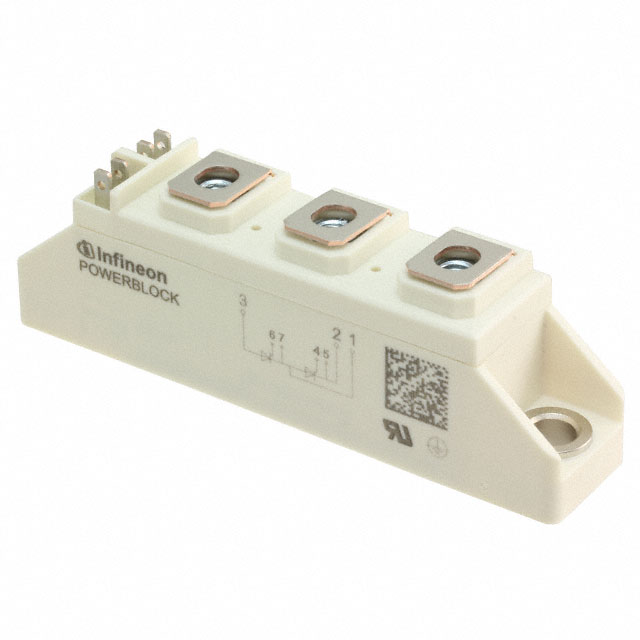

TT60N16SOFHPSA1

Active

Infineon Technologies

1600 V, 55 A ECO BLOCK 20 MM THYRISTOR / THYRISTOR PHASE CONTROL MODULES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TT60N16SOFHPSA1

Active

Infineon Technologies

1600 V, 55 A ECO BLOCK 20 MM THYRISTOR / THYRISTOR PHASE CONTROL MODULES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TT60N16SOFHPSA1

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1500 A
Current - On State (It (AV)) (Max)	55 A
Current - On State (It (RMS)) (Max)	90 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV

TT60N16 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Gate Trigger (Vgt) (Max)	Structure	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max] [x]	Current - On State (It (RMS)) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max) [Max]	Package / Case	Current - On State (It (AV)) (Max)	Number of SCRs, Diodes	Mounting Type
Infineon Technologies TT60N16SOFHPSA1	125 °C	-40 °C	2.5 V	Series Connection - All SCRs	1.6 kV	100 mA	90 A	1500 A	250 mA	Module	55 A	2 SCRs	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 31.32
		12	$ 22.55
		108	$ 19.94
Newark	Each	1	$ 32.44
		5	$ 28.54
		10	$ 24.63
		36	$ 20.73

Description

General part information

TT60N16 Series

Thyristor/Thyristor 20 mm Eco Block 1600 V, 60 A module for Phase Control insolder bond technology. If you need additional features or higher performance please also find our Power Block Thyristor Modules for Phase Control with high reliablepressure contact technology:TT61N16KOF
