19430240438

Active

HARTING Technology Group

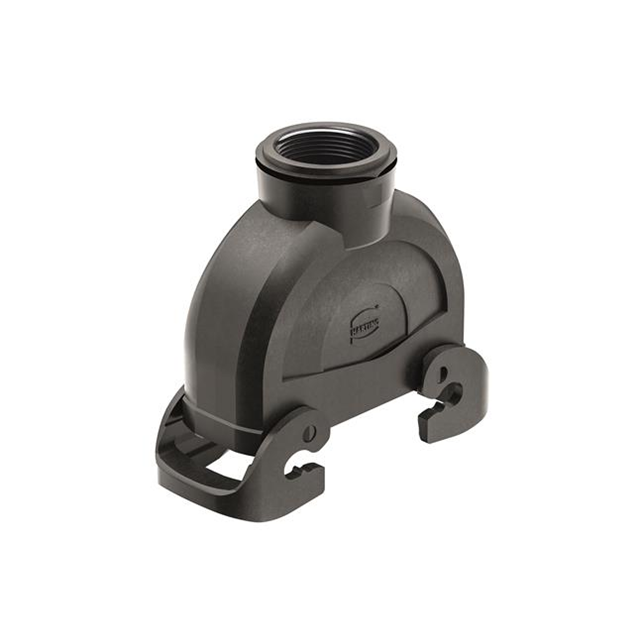

HEAVY DUTY CONNECTOR, M40, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 24B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M40, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 24B

Technical Specifications

Parameters and characteristics for this part

Specification	19430240438

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Style	Top Entry

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Size	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Housing Color	Ingress Protection	Features
HARTING Technology Group 19430240340	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	Base - Panel Mount	Bottom Entry	24 B	Locking Clip (1) on Base Bottom	5.551 in	2.362 in	1.421 "	36.1 mm	141 mm	60 mm	Black	IP66
HARTING Technology Group 19430240322	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	Base - Panel Mount	Bottom Entry	24 B	Locking Clip (2) on Hood	5.551 in	2.362 in	1.421 "	36.1 mm	141 mm	60 mm	Black	IP66	Cover
HARTING Technology Group 19430240438	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	Hood	Top Entry	24 B	Locking Clip (2) on Hood							Black	IP66
HARTING Technology Group 19430240320	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	Base - Panel Mount	Bottom Entry	24 B	Locking Clip (2) on Base Bottom	5.551 in	2.362 in	1.421 "	36.1 mm	141 mm	60 mm	Black	IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M40 24B IP66 - Dust Tight, Water Resistant
