OSTNL141001

Active

On Shore Technology Inc.

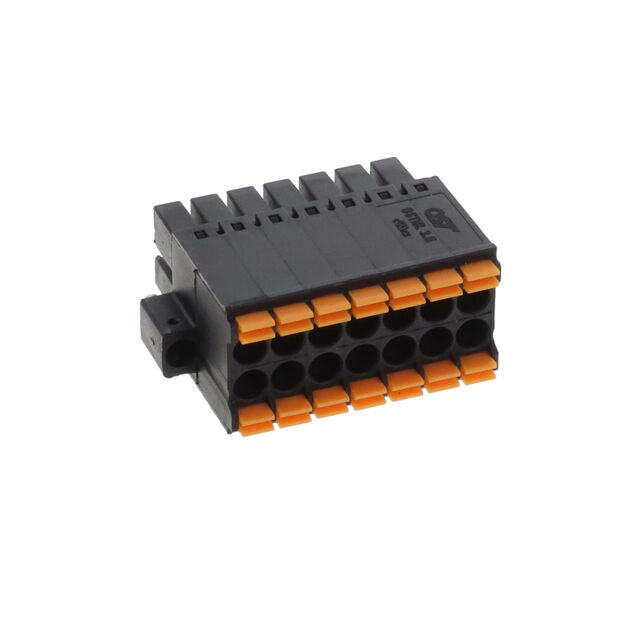

3.5MM 2 PC TERM BLOCK PLUG DUAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTNL141001

Active

On Shore Technology Inc.

3.5MM 2 PC TERM BLOCK PLUG DUAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNL141001

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	8 A
Features	Mating Flange
Insulation Height	13.25 mm
Insulation Height	0.522 "
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	2
Number of Positions	14
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	7
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Strip Length [Max]	10 mm
Wire Strip Length [Min]	9 mm

OSTNL Series

Part	Contact Material	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions	Wire Strip Length [Min]	Wire Strip Length [Max]	Pitch [x]	Pitch [x]	Positions Per Level	Voltage - UL	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Current - UL	Contact Mating Finish	Number of Levels	Termination Style	Mounting Type	Features
On Shore Technology Inc. OSTNL141001	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	14	9 mm	10 mm	3.5 mm	0.138 in	7	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	Mating Flange
On Shore Technology Inc. OSTNL121002	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	12	9 mm	10 mm	3.5 mm	0.138 in	6	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)
On Shore Technology Inc. OSTNL241002	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	24	9 mm	10 mm	3.5 mm	0.138 in	12	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)
On Shore Technology Inc. OSTNL061001	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	6	9 mm	10 mm	3.5 mm	0.138 in	3	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	Mating Flange
On Shore Technology Inc. OSTNL061002	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	6	9 mm	10 mm	3.5 mm	0.138 in	3	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)
On Shore Technology Inc. OSTNL041001	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	4	9 mm	10 mm	3.5 mm	0.138 in	2	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	Mating Flange
On Shore Technology Inc. OSTNL221002	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	22 positions	9 mm	10 mm	3.5 mm	0.138 in	11	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)
On Shore Technology Inc. OSTNL201001	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	20	9 mm	10 mm	3.5 mm	0.138 in	10	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	Mating Flange
On Shore Technology Inc. OSTNL121001	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	12	9 mm	10 mm	3.5 mm	0.138 in	6	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	Mating Flange
On Shore Technology Inc. OSTNL041002	Phosphor Bronze	UL94 V-0	13.25 mm	0.522 "	4	9 mm	10 mm	3.5 mm	0.138 in	2	300 V	Plug Female Sockets	24 AWG	16 AWG	-40 °C	115 °C	Black	8 A	Tin	2	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.31
		10	$ 6.55
		30	$ 6.23
		50	$ 5.66
		100	$ 5.43
		250	$ 4.79
		500	$ 4.48
		1000	$ 4.16

Description

General part information

OSTNL Series

14 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
