SRR0735A-151M

NRND

Bourns Inc.

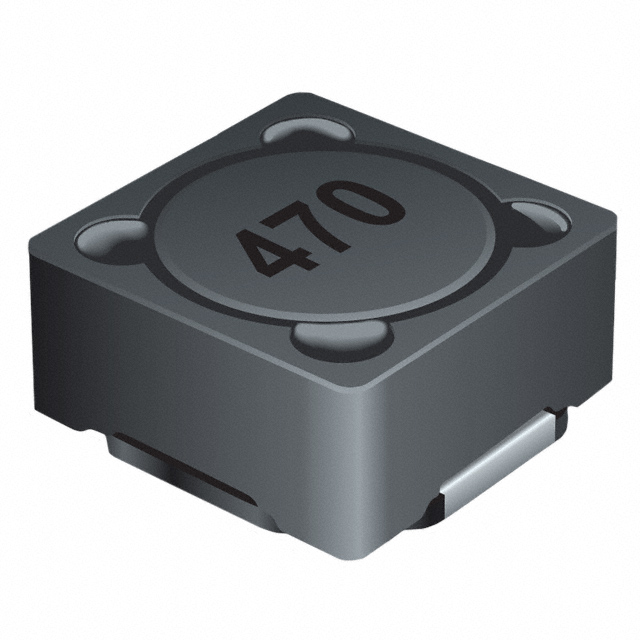

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRR0735A SERIES, 150 H, 20%, SHIELDED, 0.93 OHM, 470 MA ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

SRR0735A-151M

NRND

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRR0735A SERIES, 150 H, 20%, SHIELDED, 0.93 OHM, 470 MA ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR0735A-151M

Current - Saturation (Isat)	480 mA
Current Rating (Amps)	470 mA
DC Resistance (DCR)	930 mOhm
Height - Seated (Max) [Max]	0.146 in
Height - Seated (Max) [Max]	3.7 mm
Inductance	150 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	7.3 mm
Size / Dimension [x]	0.287 in
Size / Dimension [y]	7.3 mm
Size / Dimension [y]	0.287 in
Tolerance	20 %
Type	Wirewound, Drum Core

SRR0735A Series

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Ratings	Type	Inductance	Tolerance	DC Resistance (DCR) [Max]	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material - Core	DC Resistance (DCR)
Bourns Inc. SRR0735A-220M	1.2 A	125 °C	-40 °C	1.28 A	AEC-Q200	Drum Core Wirewound	22 µH	20 %	160 mOhm	Shielded	0.146 in	3.7 mm	Nonstandard	Surface Mount	7.3 mm	0.287 in	7.3 mm	0.287 in	Ferrite
Bourns Inc. SRR0735A-270M	1.1 A	125 °C	-40 °C	1.15 A	AEC-Q200	Drum Core Wirewound	27 µH	20 %	185 mOhm	Shielded	0.146 in	3.7 mm	Nonstandard	Surface Mount	7.3 mm	0.287 in	7.3 mm	0.287 in	Ferrite
Bourns Inc. SRR0735A-331M	0.33 A	125 °C	-40 °C		AEC-Q200	Drum Core Wirewound	330 µH	20 %	2 Ohm	Shielded	0.146 in	3.7 mm	Nonstandard	Surface Mount	7.3 mm	0.287 in	7.3 mm	0.287 in	Ferrite
Bourns Inc. SRR0735A-151M	470 mA	125 °C	-40 °C	480 mA	AEC-Q200	Drum Core Wirewound	150 µH	20 %		Shielded	0.146 in	3.7 mm	Nonstandard	Surface Mount	7.3 mm	0.287 in	7.3 mm	0.287 in	Ferrite	930 mOhm
Bourns Inc. SRR0735A-121M	0.53 A	125 °C	-40 °C	550 mA	AEC-Q200	Drum Core Wirewound		20 %	720 mOhm	Shielded	0.146 in	3.7 mm	Nonstandard	Surface Mount	7.3 mm	0.287 in	7.3 mm	0.287 in	Ferrite
Bourns Inc. SRR0735A-681M	0.21 A	125 °C	-40 °C	220 mA	AEC-Q200	Drum Core Wirewound	680 µH	20 %	4 Ohm	Shielded	0.146 in	3.7 mm	Nonstandard	Surface Mount	7.3 mm	0.287 in	7.3 mm	0.287 in	Ferrite
Bourns Inc. SRR0735A-180M	1.4 A	125 °C	-40 °C	1.4 A	AEC-Q200	Drum Core Wirewound	18 µH	20 %	125 mOhm	Shielded	0.146 in	3.7 mm	Nonstandard	Surface Mount	7.3 mm	0.287 in	7.3 mm	0.287 in	Ferrite

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.91
		10	$ 0.77
		25	$ 0.70
		50	$ 0.66
		100	$ 0.55
		250	$ 0.51
		500	$ 0.48
	Digi-Reel®	1	$ 0.91
		10	$ 0.77
		25	$ 0.70
		50	$ 0.66
		100	$ 0.55
		250	$ 0.51
		500	$ 0.48
	Tape & Reel (TR)	1500	$ 0.41
		3000	$ 0.38
		4500	$ 0.37
		7500	$ 0.35
Newark	Each (Supplied on Cut Tape)	1	$ 0.57
		10	$ 0.55

Description

General part information

SRR0735A Series

150 µH Shielded Drum Core, Wirewound Inductor 470 mA 930mOhm Max Nonstandard
