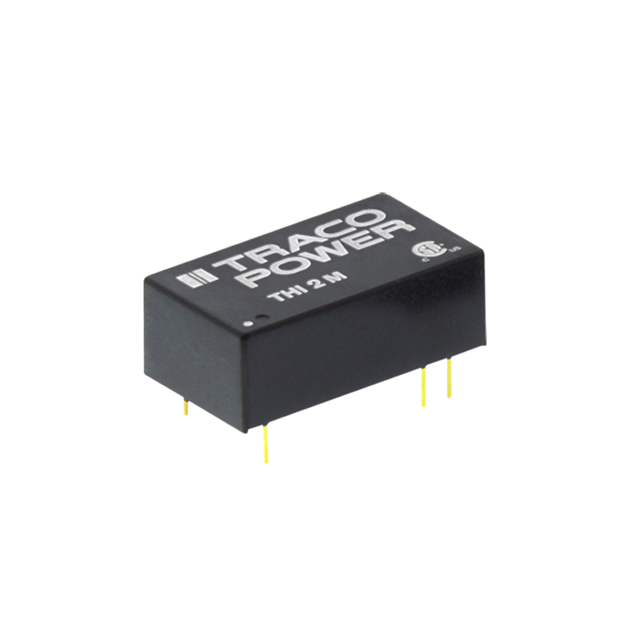

THI 2-2413M

Active

Traco Power

DC DC CONVERTER 15V 2W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER 15V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Number of Outputs	Type	Applications	Efficiency	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	Voltage - Output 2	Voltage - Output 1	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power THI 2-2422M	16-DIP Module	6 Leads	2	Isolated Module	ITE (Commercial) Medical	74 %	26.4 V	83 mA	83 mA	71 °C	-40 °C	SCP	2 W	-12 V	12 V	3000 V	0.34 in	13.7 mm	0.94 in	8.6 mm	0.54 "	23.8 mm	21.6 V	Through Hole
Traco Power THI 2-0512M	16-DIP Module	6 Leads	1	Isolated Module	ITE (Commercial) Medical	66 %	5.5 V			71 °C	-40 °C	SCP	2 W		12 V	3000 V	0.34 in	13.7 mm	0.94 in	8.6 mm	0.54 "	23.8 mm	4.5 V	Through Hole	165 mA
Traco Power THI 2-1223M	16-DIP Module	6 Leads	2	Isolated Module	ITE (Commercial) Medical	75 %	13.2 V			71 °C	-40 °C	SCP	2 W	-15 V	15 V	3000 V	0.34 in	13.7 mm	0.94 in	8.6 mm	0.54 "	23.8 mm	10.8 V	Through Hole	66 mA
Traco Power THI 2-2413M	16-DIP Module	6 Leads	1	Isolated Module	ITE (Commercial) Medical	66 %	26.4 V			71 °C	-40 °C	SCP	2 W		15 V	3000 V	0.34 in	13.7 mm	0.94 in	8.6 mm	0.54 "	23.8 mm	21.6 V	Through Hole		133 mA
Traco Power THI 2-1222M	16-DIP Module	6 Leads	2	Isolated Module	ITE (Commercial) Medical	74 %	13.2 V	83 mA	83 mA	71 °C	-40 °C	SCP	2 W	-12 V	12 V	3000 V	0.34 in	13.7 mm	0.94 in	8.6 mm	0.54 "	23.8 mm	10.8 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 133mA 21.6V - 26.4V Input
