WM8255BGEFL/RV
ObsoleteCirrus Logic Inc.
IC AFE 1 CHAN 16BIT 28QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WM8255BGEFL/RV
ObsoleteCirrus Logic Inc.
IC AFE 1 CHAN 16BIT 28QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WM8255BGEFL/RV |
|---|---|
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 1 |

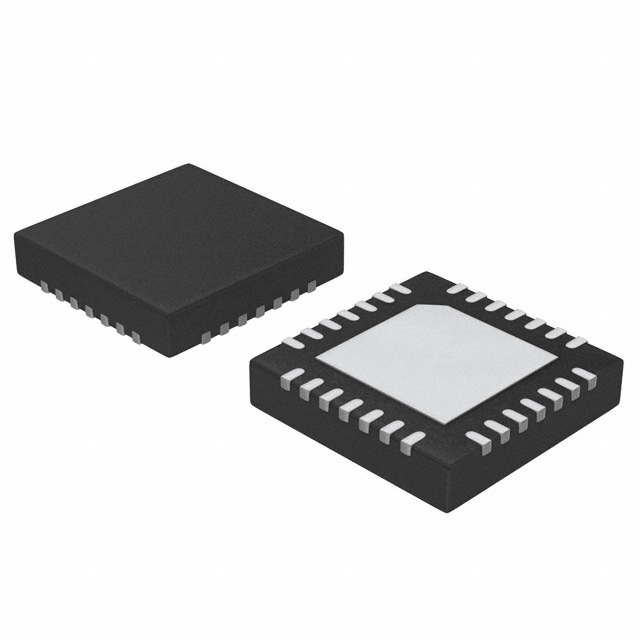

| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x4) |
| Voltage - Supply, Analog [Max] | 3.63 V, 6 V |
| Voltage - Supply, Analog [Min] | 4.75 V, 2.97 V |
| Voltage - Supply, Digital [Max] | 3.63 V |
| Voltage - Supply, Digital [Min] | 2.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WM8255 Series
1 Channel AFE 16 Bit 28-QFN (4x4)
