RA1-1D-AC-2-B-4

Active

Switch Components

VAC ROUND, SPDT ON-ON, PRINT

Search across all available documentation for this part.

Active

Switch Components

VAC ROUND, SPDT ON-ON, PRINT

Technical Specifications

Parameters and characteristics for this part

Specification	RA1-1D-AC-2-B-4

Actuator Marking	- =
Actuator Type	Round
Approval Agency	cURus, ENEC
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Ingress Protection	IP40
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Termination Style	Approval Agency	Actuator Type	Voltage Rating - AC	Color - Actuator/Cap	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Marking	Ingress Protection	Switch Function	Mounting Type	Mechanical Life	Electrical Life	Voltage Rating - DC
Switch Components RA1-1D-AC-2-B-4	10 A	Quick Connect - 0.187" (4.7mm)	cURus ENEC	Round	125 V	Black	SPDT	-25 °C	85 °C	20.2 mm	- =	IP40	On-On	Panel Mount Snap-In
Switch Components RA1-1D-DC-2-B-4	16 A 20 A	Quick Connect - 0.187" (4.7mm)	cURus ENEC	Round	125 V	Black	SPDT	-25 °C	85 °C	20.2 mm	- =		On-On	Panel Mount Snap-In	10000 Steps	6000 Cycles	14 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

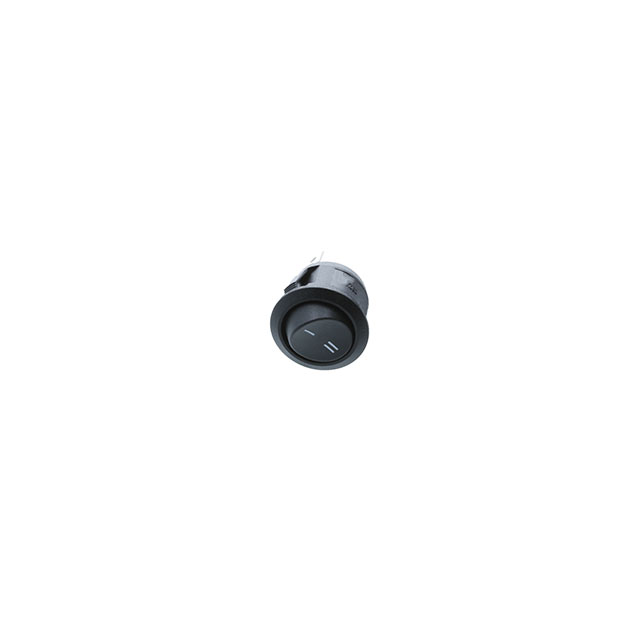

Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In
