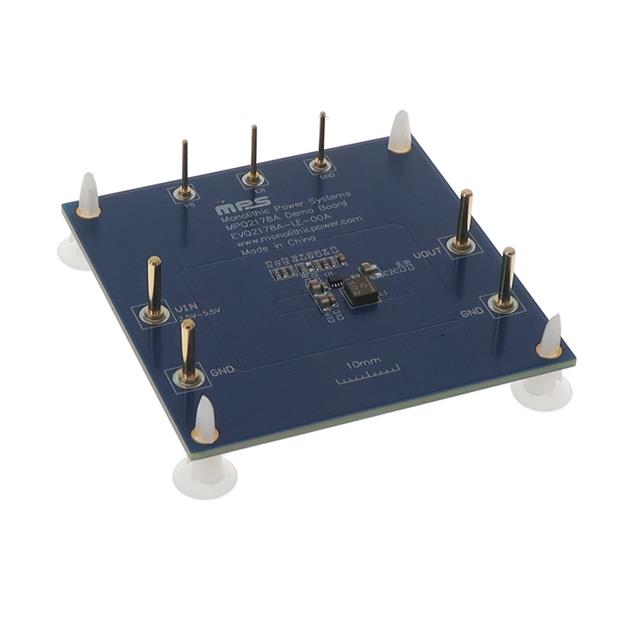

EVQ2178A-LE-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ2178A-AEC1

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ2178A-AEC1

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output	Main Purpose	Supplied Contents	Current - Output	Board Type	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Frequency - Switching	Qualification	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Output Type	Mounting Type	Function	Voltage - Output (Min/Fixed)	Supplier Device Package	Output Configuration	Grade	Package / Case	Topology	Output Type	Voltage - Output (Max)
MONOLITHIC POWER SYSTEMS (MPS) EVQ2178-LE-00A	1.2 V	DC/DC Step Down	Board(s)	2 A	Fully Populated	MPQ2178-AEC1	Non-Isolated	1	2.5 V	5.5 V	Buck	2.4 MHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ2178GQHE-18-AEC1-P				2 A								2.4 MHz	AEC-Q100	2.5 V	150 °C	-40 °C	5.5 V	1	1.81 mOhm	Surface Mount	Step-Down	1.8 V	8-QFN (2x1.5)	Positive	Automotive	8-VFDFN	Buck
MONOLITHIC POWER SYSTEMS (MPS) MPQ2178AGQHE-AEC1-Z				2 A								2.4 MHz	AEC-Q100	2.5 V	150 °C	-40 °C	5.5 V	1		Surface Mount Wettable Flank	Step-Down	0.6 V	8-QFN (2x1.5)	Positive	Automotive	8-VFDFN	Buck	Adjustable	5 V
MONOLITHIC POWER SYSTEMS (MPS) EVQ2178A-LE-00A	1.2 V	DC/DC Step Down	Board(s)	2 A	Fully Populated	MPQ2178A-AEC1	Non-Isolated	1	2.5 V	5.5 V	Buck	2.4 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00

General part information

MPQ2178A-AEC1 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
