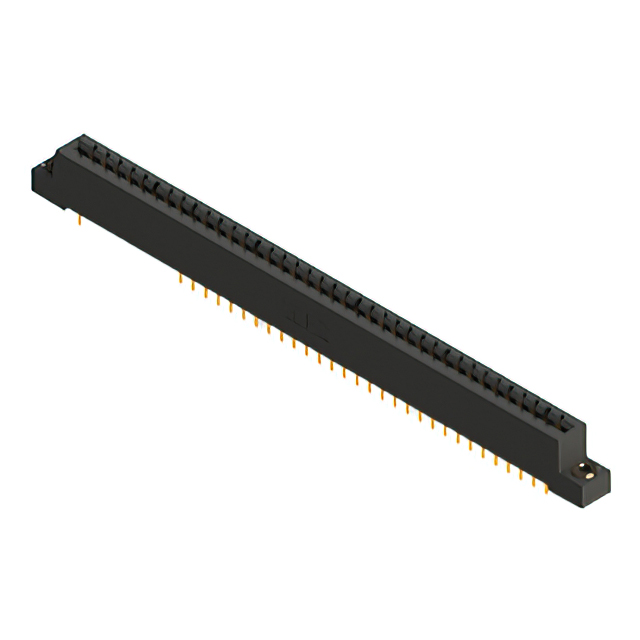

887-076-521-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 76POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-076-521-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 76POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-076-521-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	76
Number of Positions/Bay/Row [custom]	38
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

887-076 Series

...

Part	Contact Finish	Color	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Gender	Contact Material	Material - Insulation	Contact Type	Termination Rows	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Card Type	Mounting Type	Flange Feature	Flange Feature
EDAC Inc. 887-076-540-803	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Wire Wrap	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 887-076-521-212	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Solder	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 887-076-524-807	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Solder		M3 Threaded Insert Top Mount Opening		Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 887-076-520-208	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Solder		4-40 Flush Mount Threaded Insert Top Opening		Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 887-076-523-208	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Solder		4-40 Flush Mount Threaded Insert Top Opening		Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 887-076-521-803	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Solder	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 887-076-521-203	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Solder	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 887-076-558-212	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Solder	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole Right Angle
EDAC Inc. 887-076-540-804	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Wire Wrap	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole
EDAC Inc. 887-076-523-812	Gold	Black	0.156 in	3.96 mm	10 Áin	0.25 Ám	Solder		Side Mount Opening Unthreaded		Dual	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Cantilever	2	76	1.37 mm	0.054 "	1.78 mm	0.07 in	38	125 °C	-40 °C	2	Non Specified - Dual Edge	Through Hole	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 99.88
Newark	Each	1	$ 119.86
		100	$ 82.77
		250	$ 59.59
		500	$ 48.14
		1000	$ 40.88

Description

General part information

887-076 Series

76 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
