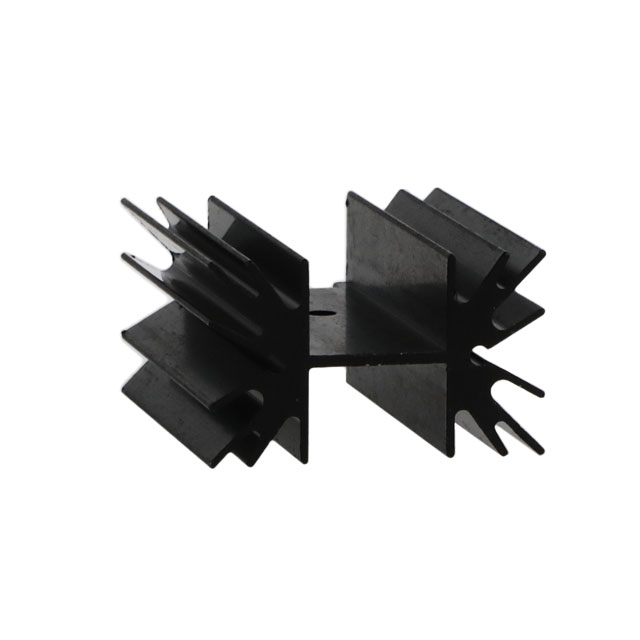

529901B02500G

Active

Boyd Laconia, LLC

HEATSINK TO-218 SOLDER PIN

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK TO-218 SOLDER PIN

Technical Specifications

Parameters and characteristics for this part

Specification	529901B02500G

Attachment Method	PC Pin, Bolt On
Fin Height	1 in
Fin Height	25.4 mm
Length	50.8 mm
Length	2 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-218
Power Dissipation @ Temperature Rise	12 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	1 °C/W
Thermal Resistance @ Natural	4.5 °C/W
Type	Board Level, Vertical
Width [x]	41.91 mm
Width [x]	1.65 in

Part	Material	Fin Height	Fin Height	Material Finish	Attachment Method	Length	Length	Power Dissipation @ Temperature Rise	Package Cooled	Shape	Thermal Resistance @ Natural	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Type
Boyd Laconia, LLC 529901B02100G	Aluminum	1 in	25.4 mm	Black Anodized	Bolt On PC Pin	50.8 mm	2 in	12 W	TO-218	Rectangular Fins	4.5 °C/W	41.91 mm	1.65 in	1 °C/W	Board Level Vertical
Boyd Laconia, LLC 529901B02500G	Aluminum	1 in	25.4 mm	Black Anodized	Bolt On PC Pin	50.8 mm	2 in	12 W	TO-218	Rectangular Fins	4.5 °C/W	41.91 mm	1.65 in	1 °C/W	Board Level Vertical
