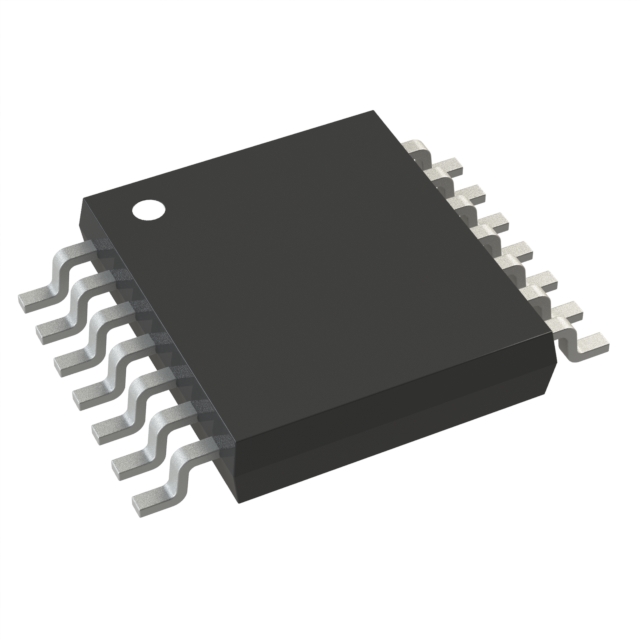

UCD7100APWP
ActiveDIGITAL CONTROL COMPATIBLE SINGLE LOW-SIDE +/- 4AMP MOSFET DRIVER WITH CURRENT SENSE
Deep-Dive with AI
Search across all available documentation for this part.
UCD7100APWP
ActiveDIGITAL CONTROL COMPATIBLE SINGLE LOW-SIDE +/- 4AMP MOSFET DRIVER WITH CURRENT SENSE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCD7100APWP |
|---|---|
| Channel Type | Single |
| Current - Peak Output (Source, Sink) [custom] | 4 A |
| Current - Peak Output (Source, Sink) [custom] | 4 A |
| Driven Configuration | Low-Side |
| Gate Type | N-Channel MOSFET |
| Input Type | Non-Inverting |
| Logic Voltage - VIL, VIH | 1.5 V, 1.65 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Operating Temperature [custom] | -40 °C, 105 °C |
| Package / Case | 14-PowerTSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Rise / Fall Time (Typ) [custom] | 10 ns |
| Rise / Fall Time (Typ) [custom] | 10 ns |
| Supplier Device Package | 14-HTSSOP |
| Voltage - Supply [Max] | 14.5 V |
| Voltage - Supply [Min] | 4.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 20.36 | |
| 10 | $ 18.71 | |||
| 90 | $ 15.80 | |||
| 270 | $ 15.03 | |||
| 540 | $ 14.06 | |||
| Texas Instruments | TUBE | 1 | $ 15.94 | |
| 100 | $ 13.92 | |||
| 250 | $ 10.73 | |||
| 1000 | $ 9.60 | |||
Description
General part information
UCD7100 Series
The UCD7100 device is part of the UCD7K family of digital control compatible drivers for applications that use digital control technology that requires fast local peak current limit protection.
The UCD7100 is a low-side ±4-A high-current MOSFET gate driver. It allows the digital power controllers such as UCD9110 or UCD9501 to interface to the power stage in single ended topologies. It provides a cycle-by-cycle current limit function with programmable threshold and a digital output current limit flag which can be monitored by the host controller. With a fast 25-ns cycle-by-cycle current limit protection, the driver can turn off the power stage in the unlikely event that the digital system can not respond to a failure situation in time.
The UCD7100 device is part of the UCD7K family of digital control compatible drivers for applications that use digital control technology that requires fast local peak current limit protection.
