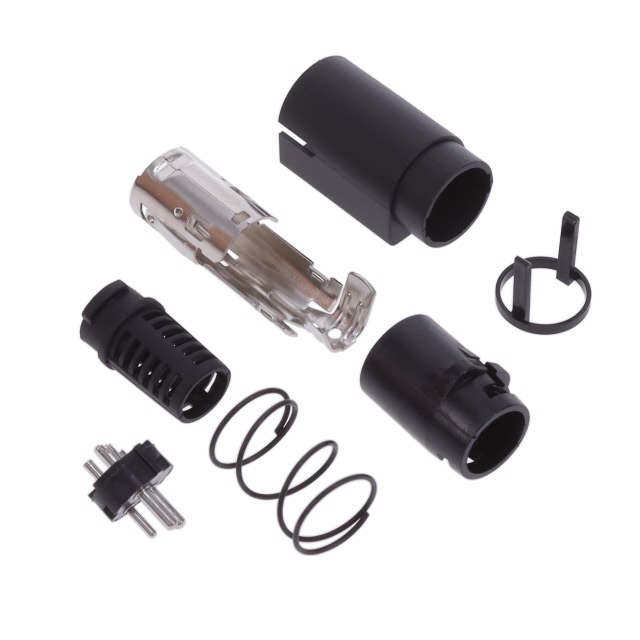

GTPWRDIN3LB

Active

GlobTek, Inc.

POWER DIN PLUG, 3P, SNAP AND LOC

Search across all available documentation for this part.

Active

GlobTek, Inc.

POWER DIN PLUG, 3P, SNAP AND LOC

Technical Specifications

Parameters and characteristics for this part

Specification	GTPWRDIN3LB

Applications	Medical
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Snap-In
Features	Strain Relief
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shielding	Shielded
Termination	Solder
Voltage Rating	54 VDC

Part	Features	Material Flammability Rating	Connector Type	Current Rating (Amps)	Orientation	Contact Material	Contact Finish - Mating	Voltage Rating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Color	Insert Material	Termination	Applications
GlobTek, Inc. GTPWRDIN3LW	Strain Relief	UL94 V-2	Male Pins Plug	7.5 A	Keyed	Brass	Silver	54 VDC	Shielded	50 °C	-20 C	Free Hanging (In-Line)	Snap-In	White	Nylon Polyamide (PA)	Solder	Medical
GlobTek, Inc. GTPWRDIN3LB	Strain Relief	UL94 V-2	Male Pins Plug	7.5 A	Keyed	Brass	Silver	54 VDC	Shielded	50 °C	-20 C	Free Hanging (In-Line)	Snap-In	Black	Nylon Polyamide (PA)	Solder	Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Solder
