887-012-542-207
ActiveEDAC Inc.

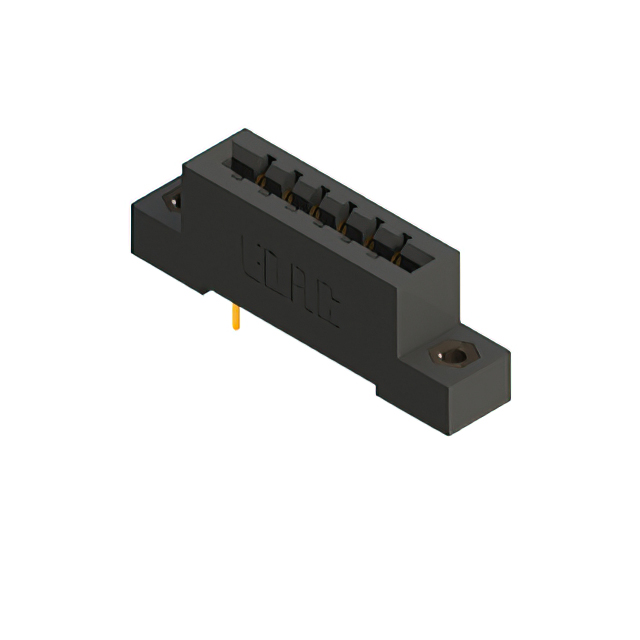

CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-012-542-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-012-542-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
887-012 Series
...
| Part | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Pitch [x] | Pitch [x] | Contact Finish | Mounting Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Color | Contact Material | Material - Insulation | Termination Rows | Number of Positions/Bay/Row [custom] | Gender | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Through Hole | Solder | 125 °C | -40 °C | Single | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 1 | 12 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Through Hole | Solder | 125 °C | -40 °C | Single | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 1 | 12 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Board Edge Straddle Mount | Solder | 125 °C | -40 °C | Dual | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 2 | 6 | Female | 2 | 10 Áin | 0.25 Ám | Cantilever | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Through Hole Right Angle | Solder | 125 °C | -40 °C | Dual | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 2 | 6 | Female | 2 | 10 Áin | 0.25 Ám | Cantilever | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Through Hole | Wire Wrap | 125 °C | -40 °C | Dual | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 2 | 6 | Female | 2 | 10 Áin | 0.25 Ám | Cantilever | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Through Hole Right Angle | Solder | 125 °C | -40 °C | Single | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 1 | 12 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Board Edge Straddle Mount | Solder | 125 °C | -40 °C | Dual | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 2 | 6 | Female | 2 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Threaded Insert Top Mount Opening | Card Extender | ||||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Through Hole | Solder | 125 °C | -40 °C | Single | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 1 | 12 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Through Hole | Solder | 125 °C | -40 °C | Dual | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 2 | 6 | Female | 2 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 0.156 in | 3.96 mm | Gold | Through Hole | Wire Wrap | 125 °C | -40 °C | Single | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | 1 | 12 | Female | 1 | 10 Áin | 0.25 Ám | Cantilever | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
887-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
