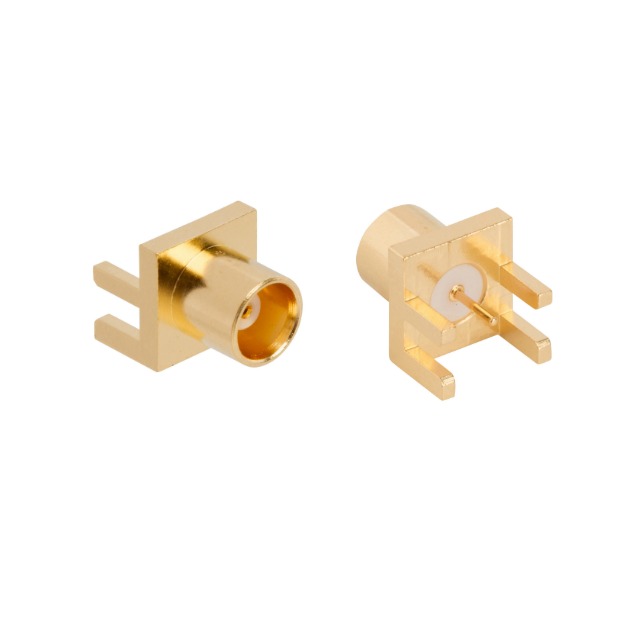

919-246J-51S

Active

Amphenol RF

CONN MCX 0HZ TO 2.6GHZ 50OHM SOLDER ST EDGE MOUNT RCP GOLD BAG

Search across all available documentation for this part.

Active

Amphenol RF

CONN MCX 0HZ TO 2.6GHZ 50OHM SOLDER ST EDGE MOUNT RCP GOLD BAG

Technical Specifications

Parameters and characteristics for this part

Specification	919-246J-51S

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2.6 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Center Contact Material	Shield Termination	Center Contact Plating	Mounting Type	Body Material	Impedance	Connector Style	Number of Ports	Fastening Type	Frequency - Max [Max]	Connector Type	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Body Finish	Dielectric Material
Amphenol RF 919-246J-51S	Beryllium Copper	Solder	Gold	Board Edge End Launch	Brass	50 Ohms	MCX	1	Snap-On	2.6 GHz	Female Socket Jack	500	-65 ░C	165 °C	Solder	Gold	Gold	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.65

General part information

MCX Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
