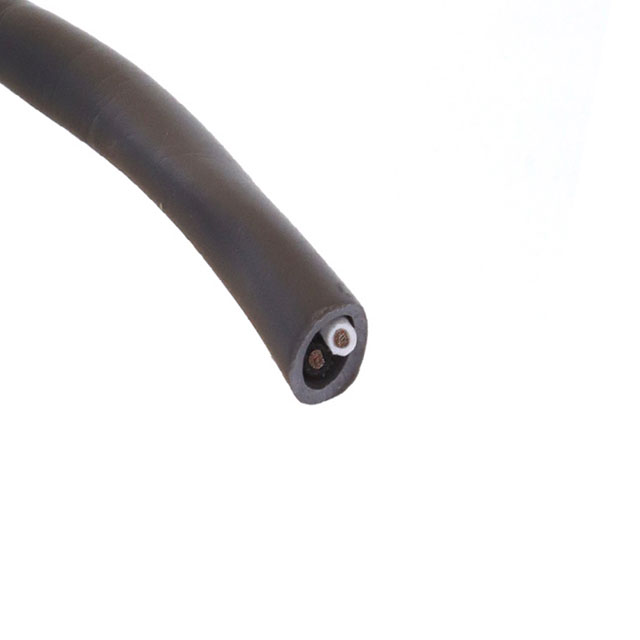

M1142 SL001

Active

ALPHA WIRE

CABLE 2COND 18AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 18AWG SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	M1142 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	0.253 in
Jacket (Insulation) Diameter [diameter]	6.43 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	300 V
Wire Gauge	18 AWG

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length	Conductor Insulation	Shield Coverage	Number of Conductors	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Cable Type	Conductor Material	Jacket (Insulation) Material
ALPHA WIRE M1142 SL199	18 AWG	0.253 in	6.43 mm	Slate	914.4 m	3000 ft	Polyethylene (PE)	90 %	2	Copper Tinned	0.889 mm	0.035 in	300 V	41 strands	34 AWG	Braid	Multi-Conductor	Copper Tinned	Poly-Vinyl Chloride (PVC)
ALPHA WIRE M1142 SL001	18 AWG	0.253 in	6.43 mm	Slate	304.8 m	1000 ft	Polyethylene (PE)	90 %	2	Copper Tinned	0.889 mm	0.035 in	300 V	41 strands	34 AWG	Braid	Multi-Conductor	Copper Tinned	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1438.22

General part information

2 Conductor Multi-Conductor Cable Slate 18 AWG Braid 1000.0' (304.8m)
