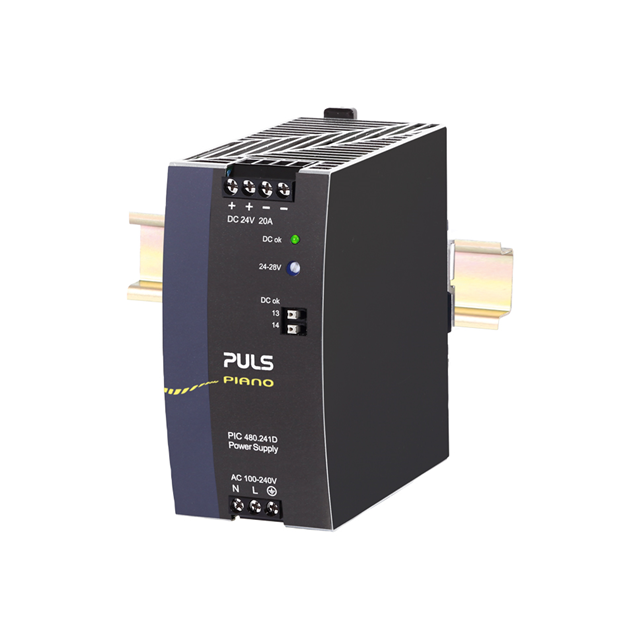

PIC480.241D

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 480W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	PIC480.241D

AC Voltage - Input [Max]	240 VAC
AC Voltage - Input [Min]	100 VAC
Applications	Industrial, ITE (Commercial), Laboratory
Approval Agency	IEC, EAC, UL
Current - Output (Max) [Max]	20 A
Efficiency	94.2 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	480 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	59 mm
Size / Dimension [y]	2.32 in
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	62368-1, 61010-2-201
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Input Type	Voltage - Output 1	Number of Outputs	Features	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Power (Watts)	Applications	Voltage - Isolation	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]
PULS, LP PIC480.241D	AC	24 V	1	Adjustable Output IP20 Load Sharing PFC Universal Input	61010-2-201 62368-1	59 mm	127 mm	5 in	124 mm	4.88 "	2.32 in	-25 °C	70 °C	EAC IEC UL	480 W	Industrial ITE (Commercial) Laboratory	500 V	94.2 %	100 VAC	240 VAC	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 319.50

General part information

AC/DC DIN RAIL SUPPLY 24V 480W
