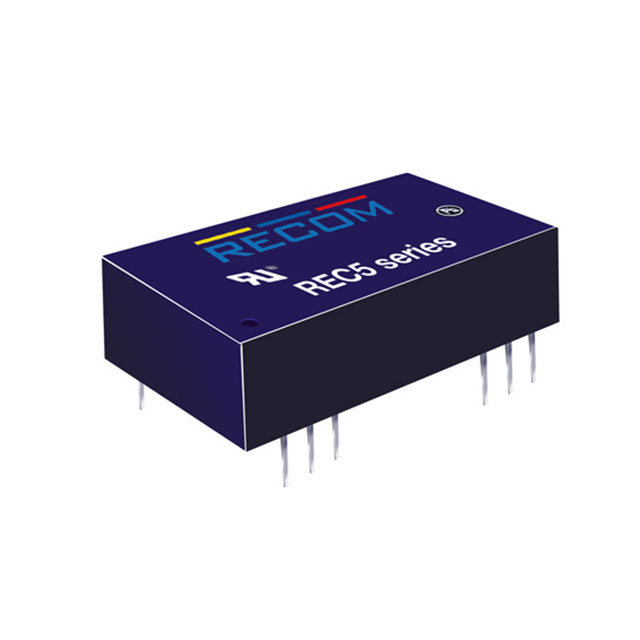

REC5-2415SRWZ/H2/A/SMD-R

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 5W DC/DC 2KV REG 4:1 9-36VIN 15VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REC5-2415SRWZ/H2/A/SMD-R

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 5W DC/DC 2KV REG 4:1 9-36VIN 15VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC5-2415SRWZ/H2/A/SMD-R

Applications	ITE (Commercial)
Current - Output (Max) [Max]	340 mA
Efficiency	85 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module, 18 Leads
Power (Watts)	5 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	19.9 mm
Size / Dimension [y]	0.78 in
Size / Dimension [z]	11.2 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	2000 V
Voltage - Output 1	15 V

REC5-S_DRW(Z) Series

Isolated DC/DC Converters - Through Hole 5W DC/DC 6kV REG 2:1 18-36Vin 3.3Vout

...

Part	Features	Voltage - Output 1	Package / Case	Package / Case	Control Features	Voltage - Input (Max) [Max]	Mounting Type	Applications	Voltage - Input (Min) [Min]	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Type	Efficiency	Power (Watts)	Number of Outputs	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max)
RECOM Power REC5-4812DRW/H2/A/M/CTRL	Remote On/Off SCP	12 V	9 PC Pad	24-DIP Module	Active Low Enable	72 V	Through Hole	ITE (Commercial)	36 V	-12 V	-40 °C	75 ░C	Isolated Module	85 %	5 W	2	2000 V	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	210 mA	210 mA
RECOM Power REC5-1209SRW/H2/A	SCP	9 V		24-DIP Module 8 Leads		18 V	Through Hole	ITE (Commercial)	9 V		-40 °C	75 ░C	Isolated Module	83 %	5 W	1	2000 V	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in			556 mA
RECOM Power REC5-0515DRW/H/B/SMD	SCP	15 V		24-SMD Module 18 Leads		9 V	Surface Mount	ITE (Commercial)	4.5 V	-15 V	-40 °C	75 ░C	Isolated Module	75 %	5 W	2	1.6 kV	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	170 mA	170 mA
RECOM Power REC5-1209DRW/H2/A/SMD	SCP	9 V		24-SMD Module 18 Leads		18 V	Surface Mount	ITE (Commercial)	9 V	-9 V	-40 °C	75 ░C	Isolated Module	84 %	5 W	2	2000 V	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in		278 mA
RECOM Power REC5-2415SRWZ/H2/A/SMD-R	SCP	15 V		24-SMD Module 18 Leads		36 V	Surface Mount	ITE (Commercial)	9 V		-40 °C	75 ░C	Isolated Module	85 %	5 W	1	2000 V	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in			340 mA
RECOM Power REC5-0515DRW/H2/C/M/SMD	SCP	15 V		24-SMD Module 18 Leads		9 V	Surface Mount	ITE (Commercial)	4.5 V	-15 V	-40 °C	75 ░C	Isolated Module	75 %	5 W	2	2000 V	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	170 mA	170 mA
RECOM Power REC5-1205SRW/H4/A/CTRL	Remote On/Off SCP	5 V		24-DIP Module 8 Leads	Active Low Enable	18 V	Through Hole	ITE (Commercial) Medical	9 V		-40 °C	75 ░C	Isolated Module	81 %	5 W	1	4000 V	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in			1 A
RECOM Power REC5-0512DRW/H4/A/M/CTRL	Remote On/Off SCP	12 V	9 PC Pad	24-DIP Module	Active Low Enable	9 V	Through Hole	ITE (Commercial) Medical	4.5 V	-12 V	-40 °C	75 ░C	Isolated Module	75 %	5 W	2	4000 V	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	210 mA	210 mA
RECOM Power REC5-1212DRW/H2/C/M/SMD-R	SCP	12 V		24-SMD Module 18 Leads		18 V	Surface Mount	ITE (Commercial)	9 V	-12 V	-40 °C	75 ░C	Isolated Module	85 %	5 W	2	2000 V	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	210 mA	210 mA
RECOM Power REC5-2405DRW/H6/A/SMD/CTRL-R	Remote On/Off SCP	5 V		24-SMD Module 18 Leads	Active Low Enable	36 V	Surface Mount	ITE (Commercial) Medical	18 V	-5 V	-40 °C	75 ░C	Isolated Module	81 %	5 W	2	6000 V	0.44 "	19.9 mm	1.26 in	11.2 mm	32 mm	0.78 in	500 mA			500 mA
