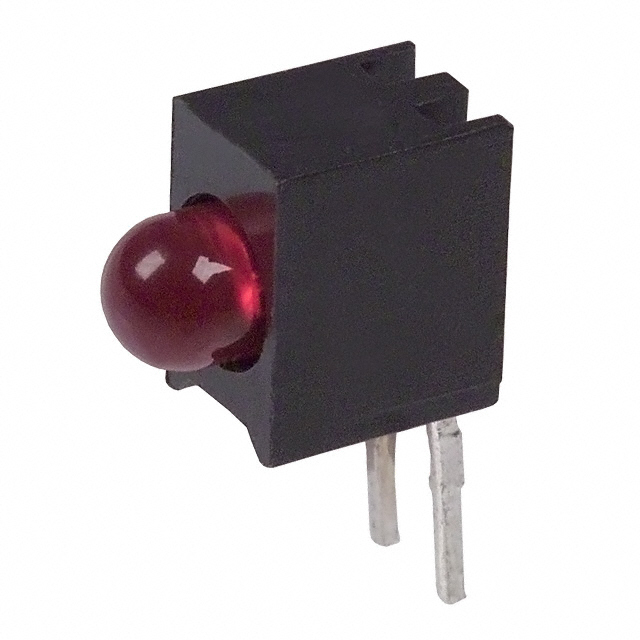

5510509F
ActiveDIALIGHT
LED CBI 3MM RED RA PC MNT
Deep-Dive with AI
Search across all available documentation for this part.
5510509F
ActiveDIALIGHT
LED CBI 3MM RED RA PC MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5510509F |
|---|---|
| Color | Red |
| Configuration | Single |
| Current | 10 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 29 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 5 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.04 | |
| 10 | $ 1.31 | |||
| 100 | $ 0.94 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.75 | |||
| 2000 | $ 0.71 | |||
| 5000 | $ 0.67 | |||
| 10000 | $ 0.65 | |||
Description
General part information
5510509 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 5V 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
