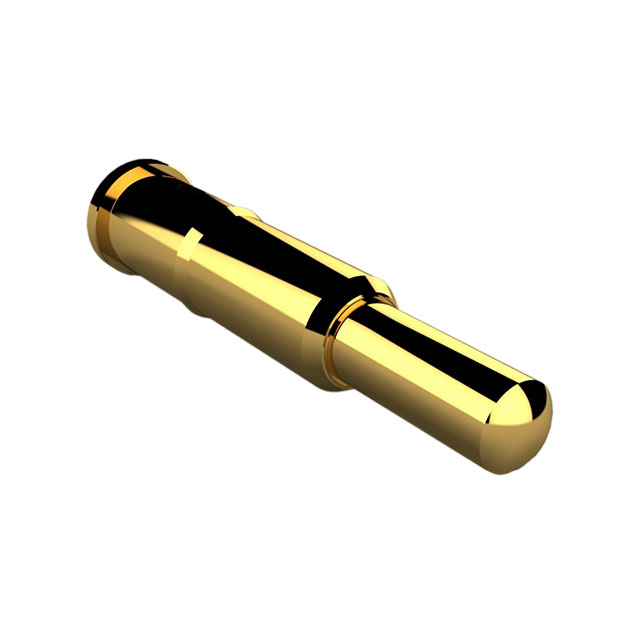

90013-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
90013-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 90013-AS |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 40000 |
| Maximum Working Height [Max] | 8.2 mm |
| Maximum Working Height [Max] | 0.323 " |
| Minimum Working Height [Min] | 6 mm |
| Minimum Working Height [Min] | 0.236 in |
| Mounting Type | Surface Mount |
| Operating Force - Initial | 20.39 gf |
| Operating Force - Mid Compression | 132.56 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 1.8 mm |
| Pad Layout Dimension [diameter] | 0.071 in |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.25 | |
| 10 | $ 1.05 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.95 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.69 | |||
| 2500 | $ 0.62 | |||
Description
General part information
90013 Series
Contact Spring Surface Mount
