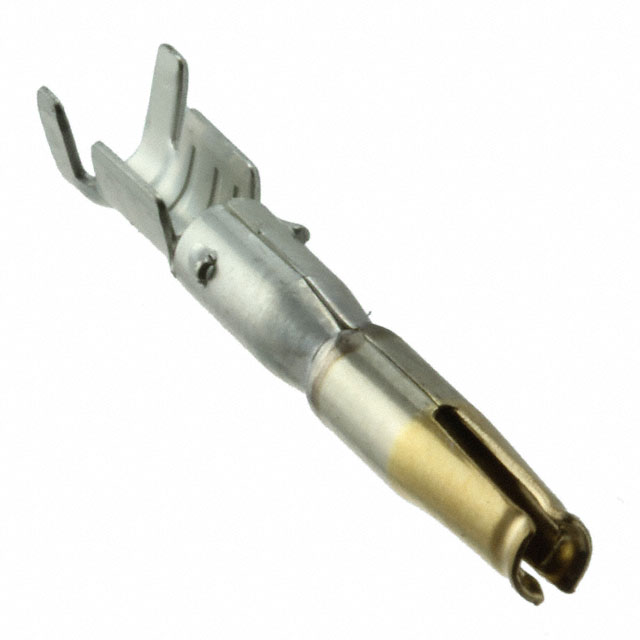

CF16SC10RF
ActiveSouriau-Sunbank by Eaton
CONTACT SOCKET 16-18AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF16SC10RF
ActiveSouriau-Sunbank by Eaton
CONTACT SOCKET 16-18AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF16SC10RF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Size | 16 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Features | Insulation Support |
| Termination Finish | Nickel |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 18 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.14 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.87 | |||
| 300 | $ 0.79 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.63 | |||
| 2500 | $ 0.57 | |||
Description
General part information
CF16SC Series
Socket Contact 16-18 AWG Size 16 Crimp Gold
Documents
Technical documentation and resources
