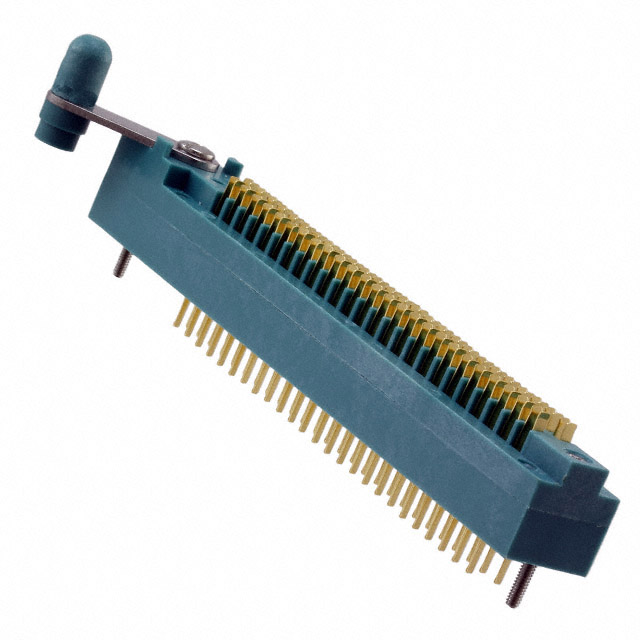

251-5949-01-0602
Active3M (TC)
JE150378410 251-5949-01-0602=ZIPSTRIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
251-5949-01-0602
Active3M (TC)
JE150378410 251-5949-01-0602=ZIPSTRIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 251-5949-01-0602 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 51 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.192 in |
| Termination Post Length | 4.9 mm |
| Type | ZIF (ZIP), Zig-Zag |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.43 | |
| 10 | $ 110.51 | |||
| 30 | $ 106.26 | |||
| 50 | $ 102.72 | |||
| 100 | $ 97.05 | |||
Description
General part information
251 Series
51 (1 x 25, 1 x 26) Pos Zig-Zag, ZIF (ZIP) Socket Gold Through Hole
