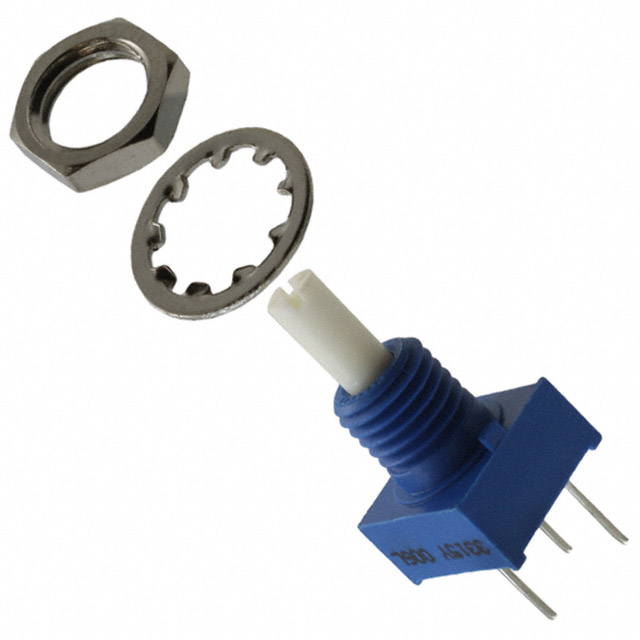

3315P-025-006L

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 6PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 6PPR

Technical Specifications

Parameters and characteristics for this part

Specification	3315P-025-006L

Actuator Type	1/8
Built in Switch	False
Detent	False
Encoder Type	Mechanical
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	6
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

Part	Encoder Type	Actuator Type	Detent	Pulses per Revolution	Output Type	Termination Style	Orientation	Rotational Life (Cycles Min) [Min]	Built in Switch
Bourns Inc. 3315P-125-016L
Bourns Inc. 3315P-025-006L	Mechanical	1/8		6	Quadrature (Incremental)	PC Pin	Vertical	100K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 4.04

General part information

Rotary Encoder Mechanical 6 Quadrature (Incremental) Vertical
