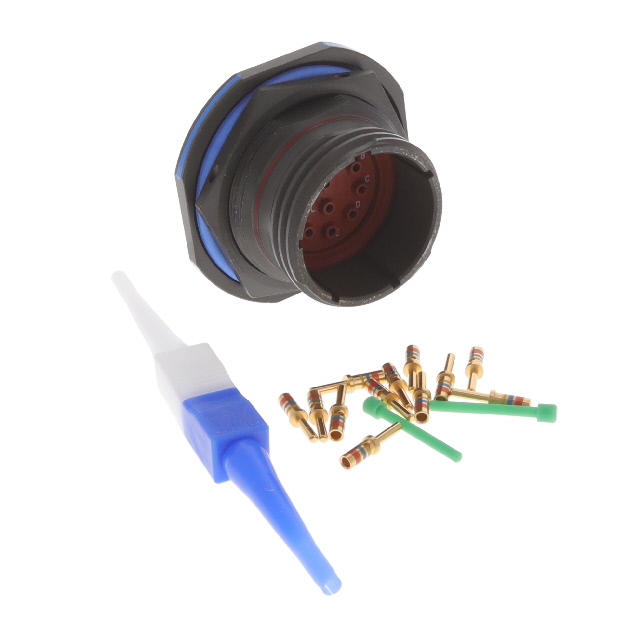

D38999/24WF11PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 11POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24WF11PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 11POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WF11PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	11
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	19-11
Shell Size, MIL	F
Shielding	Shielded
Termination	Crimp

D38999/24WF Series

Part	Orientation	Qualification	Grade	Contact Finish - Mating	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Size, MIL	Ingress Protection	Shell Material	Termination	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Color	Shielding	Number of Positions	Primary Material	Mounting Feature	Features	Insert Material	Note	Contact Shape	Contact Size	Contact Type	Type	Housing Color	Shell Size - Insert	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Aerospace Operations D38999/24WF35HN	N	MIL-DTL-38999 Series III	Military	Gold	Copper Alloy	19	35	-65 ░C	347 °F	Male Pins Receptacle	F	Environment Resistant	Aluminum	Crimp	Olive Drab Cadmium	2.54 çm	100 çin	Aerospace Aviation Military	Olive Drab	Shielded	66	Metal	Bulkhead - Front Side Nut
Amphenol Aerospace Operations D38999/24WF35SN	N	MIL-DTL-38999 Series III	Military	Gold	Copper Alloy	19	35	-65 ░C	347 °F	Receptacle Female Sockets	F	Environment Resistant	Aluminum	Crimp	Olive Drab Cadmium	1.27 µm	50 µin	Aerospace Aviation Marine Military	Olive Drab	Shielded	66	Metal	Bulkhead - Front Side Nut
Amphenol Aerospace Operations D38999/24WF35PA	A	MIL-DTL-38999 Series III	Military	Gold	Copper Alloy	19	35	-65 ░C	347 °F	Male Pins Receptacle	F	Environment Resistant	Aluminum	Crimp	Olive Drab Cadmium	1.27 µm	50 µin	Aerospace Aviation Marine Military	Olive Drab	Shielded	66	Metal	Bulkhead - Front Side Nut	Self Locking	Thermoplastic
Amphenol Aerospace Operations D38999/24WF35SA-LC	A	MIL-DTL-38999 Series III	Military			19	35	-65 ░C	347 °F	Receptacle Housing	F	Environment Resistant	Aluminum		Cadmium					Shielded	66		Bulkhead - Front Side Nut			Contacts Not Included	Circular	22D	Crimp	For Female Sockets	Olive Drab
Amphenol Aerospace Operations D38999/24WF35PN	N	MIL-DTL-38999 Series III	Military	Gold	Copper Alloy	19	35	-65 ░C	347 °F	Male Pins Receptacle	F	Environment Resistant	Aluminum	Crimp	Olive Drab Cadmium	1.27 µm	50 µin	Aerospace Aviation Marine Military	Olive Drab	Shielded	66	Metal	Bulkhead - Front Side Nut	Self Locking	Thermoplastic
Amphenol Aerospace Operations D38999/24WF11PN	N	MIL-DTL-38999 Series III	Military	Gold	Copper Alloy			-65 ░C	347 °F	Male Pins Receptacle	F	Environment Resistant	Aluminum	Crimp	Olive Drab Cadmium	1.27 µm	50 µin	Aerospace Aviation Marine Military	Olive Drab	Shielded	11	Metal	Bulkhead - Front Side Nut									19-11
Amphenol Aerospace Operations D38999/24WF28SN-LC	N	MIL-DTL-38999 Series III	Military					-65 ░C	347 °F	Receptacle Housing	F	Environment Resistant	Aluminum		Cadmium					Shielded	28		Bulkhead - Front Side Nut			Contacts Not Included	Circular	16 (2) 20 (26)	Crimp	For Female Sockets	Olive Drab		28	19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 67.02
		10	$ 64.86
		25	$ 62.83
		50	$ 61.87
		100	$ 58.28
		250	$ 57.46
		500	$ 55.09
		1000	$ 53.62
	Bulk	1	$ 326.73
		10	$ 270.15
		25	$ 251.29

Description

General part information

D38999/24WF Series

11 Position Circular Connector Receptacle, Male Pins Crimp
