TMC429-BOB

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC429

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC429

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Technology	Motor Type - Stepper	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Interface	Function	Step Resolution [Max]	Step Resolution [Min]	Output Configuration	Applications	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Utilized IC / Part	Type	Supplied Contents	Secondary Attributes	Embedded	Primary Attributes	Contents
Analog Devices Inc./Maxim Integrated TMC429-LI-T	5 V	3.3 V	CMOS	Bipolar	105 °C	-40 °C	32-VFQFN Exposed Pad	SPI	Controller - Commutation Direction Management	0.015625	1	SPI Step/Direction	General Purpose	Surface Mount	32-QFN (5x5)
Analog Devices Inc./Maxim Integrated TMC429-I	5 V	3.3 V	CMOS	Bipolar	105 °C	-40 °C	16-SSOP	SPI	Controller - Commutation Direction Management	0.015625	1	SPI Step/Direction	General Purpose	Surface Mount	16-SSOP	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated TMC429-BOB																		TMC429	Power Management	Board(s)
Analog Devices Inc./Maxim Integrated TMC429+TMC26X-EVAL																		TMC260 TMC261 TMC262 TMC424 TMC429	Power Management	Board(s) Cable(s)	SPI Interface(s)	Yes MCU	2 Channel H-Bridge Driver	Board(s) Cable(s)
Analog Devices Inc./Maxim Integrated TMC429-LI	5 V	3.3 V	CMOS	Bipolar	105 °C	-40 °C	32-VFQFN Exposed Pad	SPI	Controller - Commutation Direction Management	0.015625	1	SPI Step/Direction	General Purpose	Surface Mount	32-QFN (5x5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.20

General part information

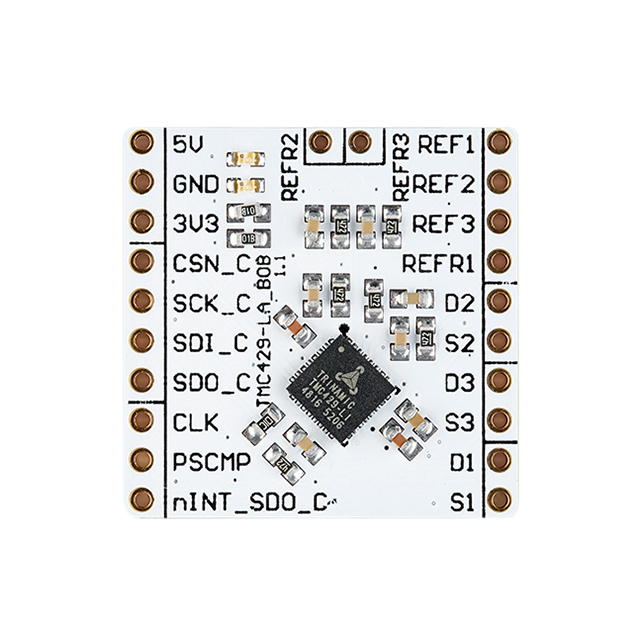

TMC429 Motor Controller/Driver, Stepper Power Management Evaluation Board
