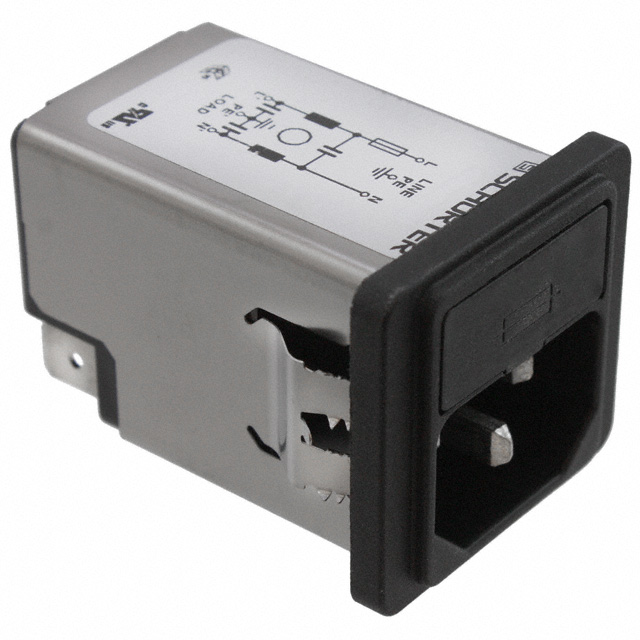

5200.0643.1 - 5200.0643.1

5200.0643.1

Active
SCHURTER Inc.

5200, MOUNTING: SNAP-IN, FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 1-POLE, FRONT SIDE, 6 A, THERMOPLASTIC APPLIANCE INL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetPEM Filter Overview+1
5200.0643.1 - 5200.0643.1

5200.0643.1

Active
SCHURTER Inc.

5200, MOUNTING: SNAP-IN, FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 1-POLE, FRONT SIDE, 6 A, THERMOPLASTIC APPLIANCE INL

Deep-Dive with AI

DocumentsDatasheetPEM Filter Overview+1

Technical Specifications

Parameters and characteristics for this part

Specification5200.0643.1
Accomodates a FuseTrue
Approval AgencyENEC, cULus
Connector StyleIEC 320-C14
Connector TypeReceptacle, Male Blades - Module
Current Rating - Appliance Inlet6 A
Current Rating - Filter6 A
Filter TypeFiltered (EMI, RFI) - Commercial
Fuse Holder, DrawerFuse Holder
Ingress ProtectionIP40
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount, Snap-In
Panel Cutout Dimensions [x]32 mm
Panel Cutout Dimensions [y]29 mm
Panel Thickness [Max]0.118 in
Panel Thickness [Max]3 mm
Panel Thickness [Min]0.79 mm
Panel Thickness [Min]0.031 "
Termination0.25 in
Termination6.3 mm
TerminationQuick Connect
Voltage Rating - Appliance Inlet250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 20.09
50$ 17.11
100$ 15.45
NewarkEach 10$ 23.73
20$ 20.77
50$ 18.66
100$ 17.43
200$ 16.81
500$ 16.56

Description

General part information

5200.0643 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
