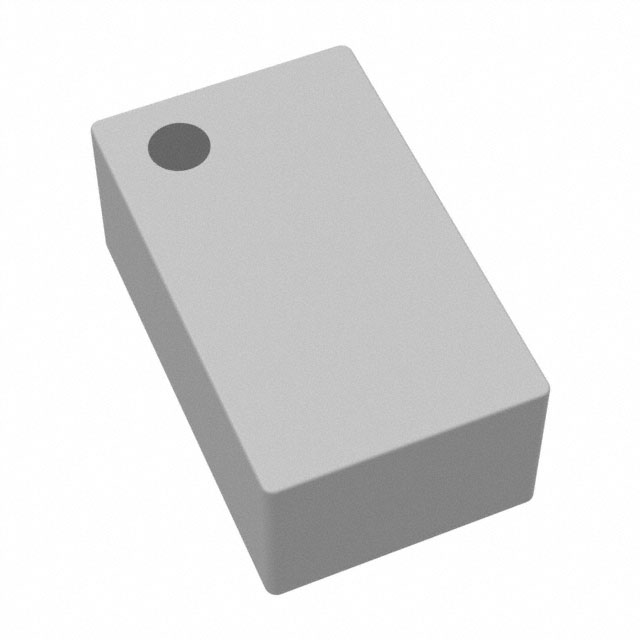

HTEH20120H-R47MSR

Active

Delta Electronics/Cyntec

FIXED IND 470NH 3.9A 33MOHM SMD

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

FIXED IND 470NH 3.9A 33MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Inductance	Material - Core	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Current Rating (Amps)	Mounting Type	Shielding	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)
Delta Electronics/Cyntec HTEH20120H-1R0MSR	1 µH	Metal	1 MHz	-55 °C	125 °C	0805	20 %	2 mm	0.047 in	0.079 in	1.2 mm	0805	3.5 A	Surface Mount	Shielded	55 mOhm	0.8 mm	0.031 "	3.3 A
Delta Electronics/Cyntec HTEH20120H-R47MSR	470 nH	Metal	1 MHz	-55 °C	125 °C	0805	20 %	2 mm	0.047 in	0.079 in	1.2 mm	0805	3.9 A	Surface Mount	Shielded	33 mOhm	0.8 mm	0.031 "	4.3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.12

General part information

470 nH Shielded Inductor 3.9 A 33mOhm Max 0805 (2012 Metric)

Technical documentation and resources
