D22022P

Active

NKK Switches

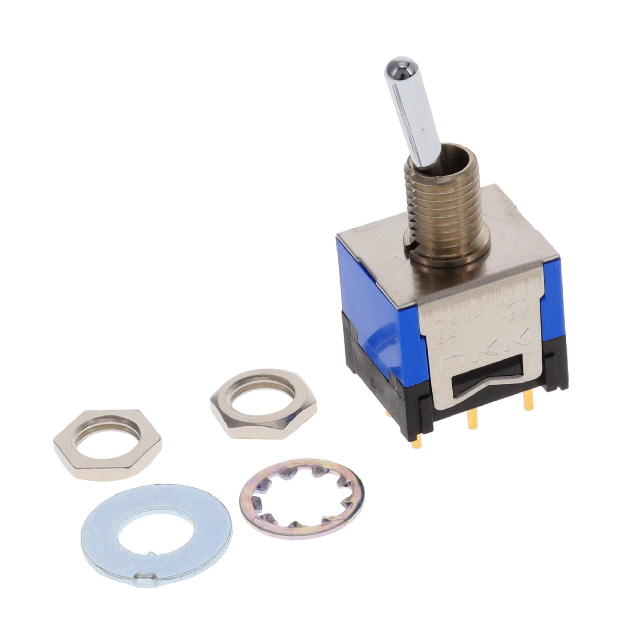

TOGGLE SWITCH, ON-NONE-ON, DPDT, NON ILLUMINATED, D2 SERIES, PANEL, THROUGH HOLE

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, ON-NONE-ON, DPDT, NON ILLUMINATED, D2 SERIES, PANEL, THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	D22022P

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

Part	Termination Style	Bushing Thread	Actuator Material	Voltage Rating - AC	Current Rating (Amps)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Mounting Type	Electrical Life	Switch Function	Voltage Rating - DC	Circuit	Actuator Type	Illumination	Actuator Length [x]	Panel Cutout Dimensions [diameter]
NKK Switches D22022V	PC Pin	Unthreaded	Brass Chrome Plated	48 V	0.4 VA	-10 °C	158 °F	Right Angle Through Hole Vertical	50000 Cycles	On-On	48 V	DPDT	Standard Round	Non-Illuminated
NKK Switches D22022LB	PC Pin	Unthreaded	Brass Chrome Plated	48 V	0.4 VA	-10 °C	158 °F	Through Hole	50000 Cycles	On-On	48 V	DPDT	Locking Lever	Non-Illuminated	19.4 mm
NKK Switches D22022LV	PC Pin	Unthreaded	Brass Chrome Plated	48 V	0.4 VA	-10 °C	158 °F	Right Angle Through Hole Vertical	50000 Cycles	On-On	48 V	DPDT	Locking Lever	Non-Illuminated	19.4 mm
NKK Switches D22022P	PC Pin	M6 x 0.75	Brass Chrome Plated	48 V	0.4 VA	-10 °C	158 °F		50000 Cycles	On-On	48 V	DPDT	Standard Round	Non-Illuminated		6.5 mm
NKK Switches D22022B	PC Pin	Unthreaded	Brass Chrome Plated	28 V	0.4 VA	-10 °C	158 °F	Through Hole	50000 Cycles	On-On	28 V	DPDT	Standard Round	Non-Illuminated
