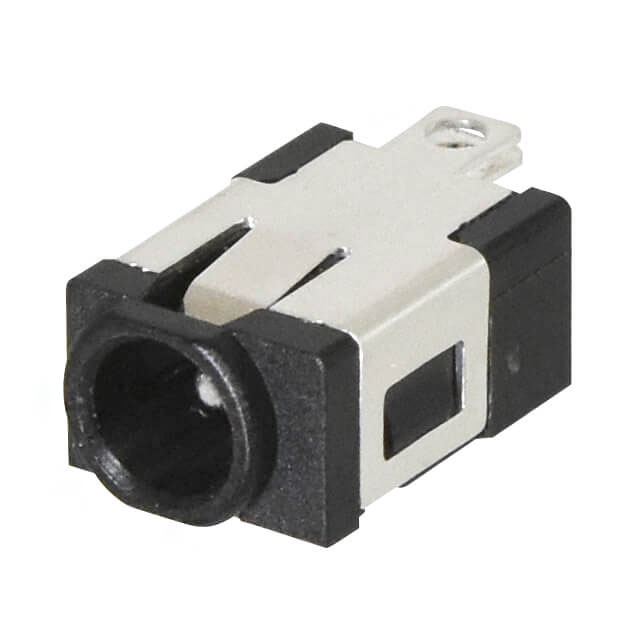

PJ-004CH
ActiveCUI Devices
PWR JACK 1X3.1MM VERTICAL THROUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-004CH
ActiveCUI Devices
PWR JACK 1X3.1MM VERTICAL THROUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-004CH |
|---|---|
| Actual Diameter [custom] | 0.122 in |
| Actual Diameter [custom] | 3.1 mm |
| Actual Diameter [custom] | 1 mm |
| Actual Diameter [custom] | 0.039 in |
| Body Color | Silver, Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 3.5 A |
| Gender | Male |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Industry Recognized Mating Diameter | 1.1 mm, 3 mm |
| Industry Recognized Mating Diameter [custom] | 0.118 " |
| Industry Recognized Mating Diameter [custom] | 0.043 " |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 6.05 mm |
| Mating Length/Depth | 0.238 in |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.39 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.13 | |||
| 40 | $ 1.11 | |||
| 80 | $ 1.06 | |||
| 230 | $ 0.96 | |||
| 440 | $ 0.87 | |||
| 1000 | $ 0.77 | |||
| 3000 | $ 0.70 | |||
Description
General part information
PJ-004 Series
Power Barrel Connector Jack 1.10mm ID (0.043"), 3.00mm OD (0.118") Panel Mount
Documents
Technical documentation and resources
