MPQ4313GRE-AEC1-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 3A 20QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK ADJ 3A 20QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ4313GRE-AEC1-Z

Current - Output	3 A
Frequency - Switching	470 kHz
Function	Step-Down
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Qualification	AEC-Q100

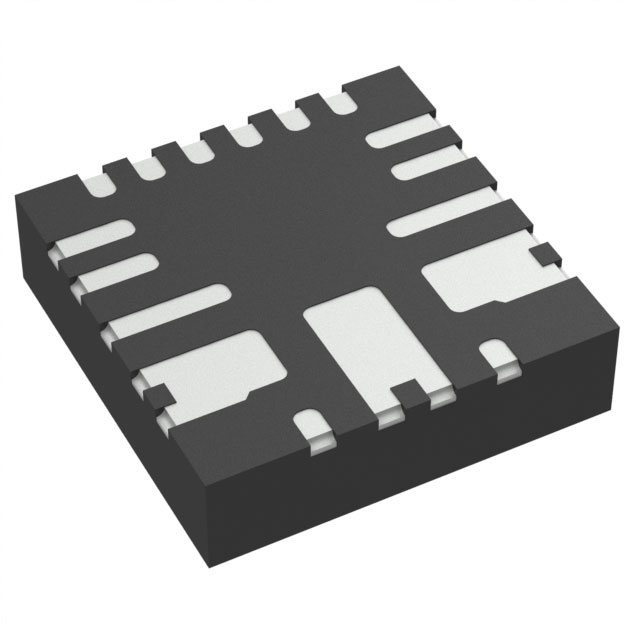

Supplier Device Package	20-QFN (4x4)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	45 V
Voltage - Output (Max) [Max]	45 V

Part	Output Type	Frequency - Switching	Voltage - Output (Min/Fixed)	Grade	Voltage - Input (Max) [Max]	Output Configuration	Topology	Mounting Type	Current - Output	Function	Number of Outputs	Supplier Device Package	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Output (Max) [Max]	Main Purpose	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Regulator Topology	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part
MONOLITHIC POWER SYSTEMS (MPS) MPQ4313GRE-5-AEC1-P	1.81 mOhm	470 kHz	5 V	Automotive	45 V	Positive	Buck	Surface Mount Wettable Flank	3 A	Step-Down	1	20-QFN (4x4)	AEC-Q100	150 °C	-40 °C
MONOLITHIC POWER SYSTEMS (MPS) MPQ4313GRE-AEC1-P		470 kHz		Automotive	45 V	Positive	Buck	Surface Mount Wettable Flank	3 A	Step-Down	1	20-QFN (4x4)	AEC-Q100	150 °C	-40 °C	Adjustable	45 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ4313GRE-33-AEC1-P	1.81 mOhm	470 kHz	3.3 V	Automotive	45 V	Positive	Buck	Surface Mount Wettable Flank	3 A	Step-Down	1	20-QFN (4x4)	AEC-Q100	150 °C	-40 °C
MONOLITHIC POWER SYSTEMS (MPS) EVQ4313-R-01A		410 kHz							3 A									DC/DC Step Down	Fully Populated	Board(s)	Non-Isolated	1	Buck	3.3 V	45 V	3.3 V	MPQ4313-AEC1
MONOLITHIC POWER SYSTEMS (MPS) MPQ4313GRE-5-AEC1-Z	1.81 mOhm	470 kHz	5 V	Automotive	45 V	Positive	Buck	Surface Mount Wettable Flank	3 A	Step-Down	1	20-QFN (4x4)	AEC-Q100	150 °C	-40 °C
MONOLITHIC POWER SYSTEMS (MPS) MPQ4313GRE-AEC1-Z		470 kHz		Automotive	45 V	Positive	Buck	Surface Mount Wettable Flank	3 A	Step-Down	1	20-QFN (4x4)	AEC-Q100	150 °C	-40 °C	Adjustable	45 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 0.815V 1 Output 3A 20-PowerVFQFN
