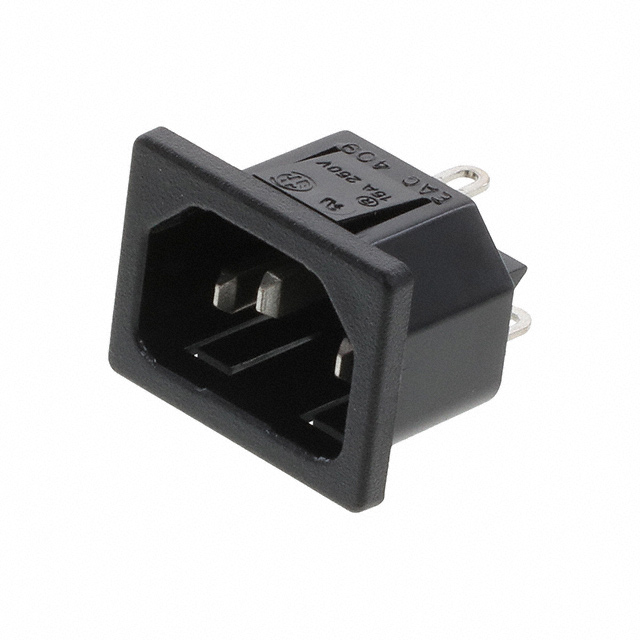

EAC409060
ActiveSwitchcraft Inc.
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAC409060
ActiveSwitchcraft Inc.
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAC409060 |
|---|---|
| Accomodates a Fuse | False |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.41 mm |
| Panel Cutout Dimensions [y] | 19.79 mm |
| Panel Thickness [Max] | 1.78 mm |
| Panel Thickness [Max] | 0.07 in |
| Panel Thickness [Min] | 1.52 mm |
| Panel Thickness [Min] | 0.06 in |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.68 | |
| 10 | $ 4.35 | |||
| 25 | $ 3.92 | |||
| 50 | $ 3.63 | |||
| 100 | $ 3.37 | |||
| 250 | $ 3.06 | |||
Description
General part information
EAC409 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
