VSKTF200-12HK

Obsolete

Vishay General Semiconductor - Diodes Division

SCR DBL 2SCR 1200V 200A MAGNAPAK

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

SCR DBL 2SCR 1200V 200A MAGNAPAK

Technical Specifications

Parameters and characteristics for this part

Specification	VSKTF200-12HK

Current - Gate Trigger (Igt) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	8000 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	7600 A
Current - On State (It (AV)) (Max)	200 A
Current - On State (It (RMS)) (Max)	444 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

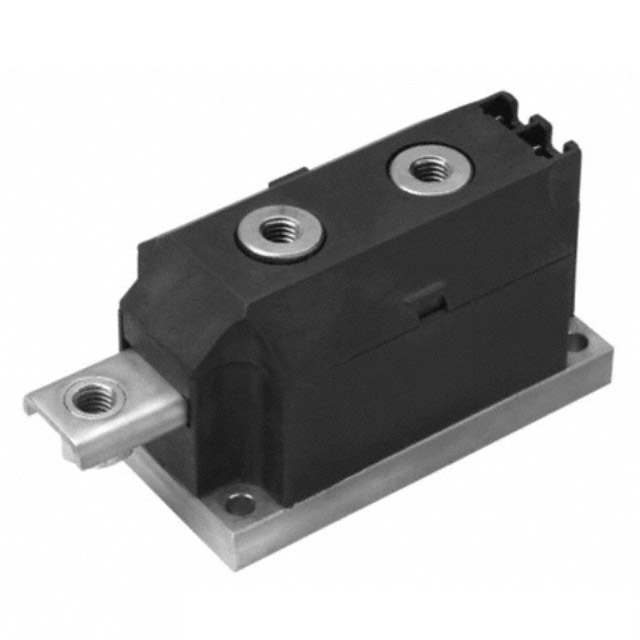

Package / Case	3-MAGN-A-PAK™
Structure	Series Connection - All SCRs
Voltage - Off State	1.2 kV

Part	Current - On State (It (AV)) (Max)	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Voltage - Off State	Structure	Operating Temperature [Min]	Operating Temperature [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max)	Number of SCRs, Diodes	Mounting Type
Vishay General Semiconductor - Diodes Division VSKTF200-12HK	200 A	3-MAGN-A-PAK™	8000 A	7600 A	1.2 kV	Series Connection - All SCRs	-40 °C	125 ¯C	200 mA	444 A	2 SCRs	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.2 kV 444 A Series Connection - All SCRs Chassis Mount 3-MAGN-A-PAK™
