HSMF-C115
ActiveBroadcom Limited
LED RGB DIFFUSED CHIP SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.

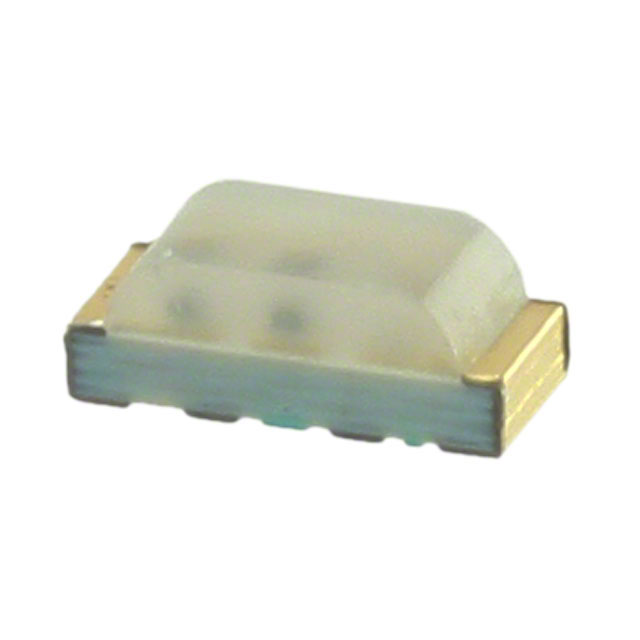

HSMF-C115
ActiveBroadcom Limited
LED RGB DIFFUSED CHIP SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-C115 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | White |
| Lens Size [x] | 2.1 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 60 mcd |
| Millicandela Rating [custom] | 170 mcd |
| Millicandela Rating [custom] | 80 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle [custom] | 125 ° |
| Viewing Angle [custom] | 125 ° |
| Viewing Angle [custom] | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V, 3.4 V, 1.9 V |
| Wavelength - Dominant | 525 nm, 470 nm, 626 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.26 | |
| 10 | $ 1.46 | |||
| 100 | $ 1.06 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.85 | |||
| Digi-Reel® | 1 | $ 2.26 | ||
| 10 | $ 1.46 | |||
| 100 | $ 1.06 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.85 | |||
| Tape & Reel (TR) | 3000 | $ 0.79 | ||
| 6000 | $ 0.76 | |||
| 9000 | $ 0.75 | |||
Description
General part information
HSMF-C115 Series
Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.4V Green, 3.4V Blue 4-SMD, No Lead
