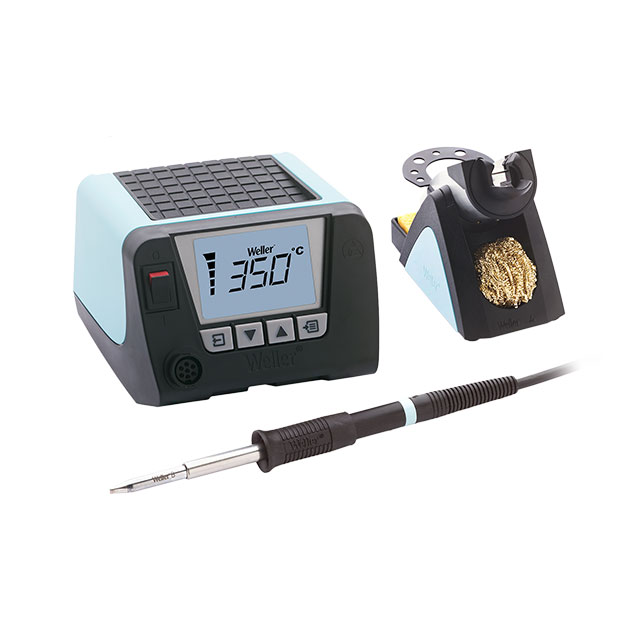

WT1010HN

Active

Apex Tool Group

SOLDERING STATION 150W 1 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING STATION 150W 1 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WT1010HN

Base Unit	WT1H
Control/Display Type	Digital
Features	ESD Safe, LCD Display
Includes	Soldering Pencil
Number of Channels	1
Plug Type	Not Specified, Included
Supplied Iron, Tweezer, Handle	WP120
Supplied Tips/Nozzles	XTB
Temperature Range [Max]	950 °F
Temperature Range [Max]	550 °C
Temperature Range [Min]	150 °F
Temperature Range [Min]	50 °C
Tip Cleaner	Scouring Pad and Sponge
Type	Soldering
Voltage - Input	120 V
Wattage	150 W
Workstand	WSR201

Part	Workstand	Supplied Tips/Nozzles	Control/Display Type	Base Unit	Tip Cleaner	Features	Includes	Number of Channels	Supplied Iron, Tweezer, Handle	Voltage - Input	Wattage	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Plug Type	Type
Apex Tool Group WT1010HN	WSR201	XTB	Digital	WT1H	Scouring Pad and Sponge	ESD Safe LCD Display	Soldering Pencil	1	WP120	120 V	150 W	950 °F	150 °F	50 °C	550 °C	Included Not Specified	Soldering
Apex Tool Group WT1010N	WSR200	XNTA	Digital	WT1	Scouring Pad and Sponge	ESD Safe LCD Display	Soldering Pencil	1	WTP90	120 V	90 W	850 °F	150 °F	50 °C	450 °C	Included Not Specified	Soldering

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 670.00

General part information

SOLDERING STATION 150W 1 CH 120V
