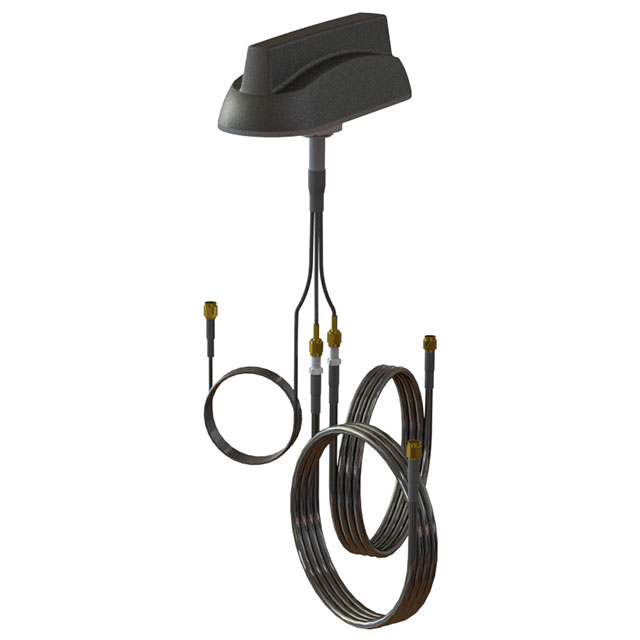

VFT69383B2NJN-518Q
ActiveTE Connectivity Raychem Cable Protection
VEHICULAR,MIMO,3 PORTS LTE1,LTE2,GNSS,BL
Deep-Dive with AI
Search across all available documentation for this part.
VFT69383B2NJN-518Q
ActiveTE Connectivity Raychem Cable Protection
VEHICULAR,MIMO,3 PORTS LTE1,LTE2,GNSS,BL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VFT69383B2NJN-518Q |
|---|---|
| Antenna Type | Dome |
| Applications | LTE, GLONASS, 4G, Beidou, GPS, 3G, ISM, 5G, GNSS |
| Features | Cable - 5.18M, LNA |
| Frequency (Center/Band) | 1.602 GHz, 1.785 GHz, 1.575 GHz, 2.6 GHz, 920 MHz, 2.4 GHz, 1.92 GHz, 2.045 GHz, 752 MHz, 859 MHz, 1.561 GHz, 3.55 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 806 MHz, 2.5 GHz, 894 MHz, 1.88 GHz, 960 MHz, 1.606 GHz, 3.8 GHz, 1.99 GHz, 2.18 GHz, 2.7 GHz |
| Frequency Range [Min] | 1.559 GHz, 698 MHz, 2.3 GHz, 3.3 GHz, 880 MHz, 1.69 GHz, 1.85 GHz, 1.91 GHz, 2.5 GHz, 824 MHz |
| Gain | 3.4 dBi, 0.2 dBi, 5.5 dBi, 0.5 dBi, 3 dBi, 3.7 dBi, 4.9 dBi, 2.5 dBi, 4.6 dBi, 5.4 dBi, 0.7 dBi |
| Height (Max) [Max] | 48 mm |
| Height (Max) [Max] | 1.89 in |
| Ingress Protection | IP67 |
| Number of Bands | 12 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Navigation, General ISM, Cellular |
| Termination | SMA Male (2) |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 139.29 | |
| 10 | $ 114.18 | |||
| 25 | $ 109.64 | |||
Description
General part information
VFT69383 Series
Shark Fin Antenna, Multi Band, Vehicular, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Multiple Ports, > 6 dBi Peak Gain
