12152000

Active

Bopla Enclosures

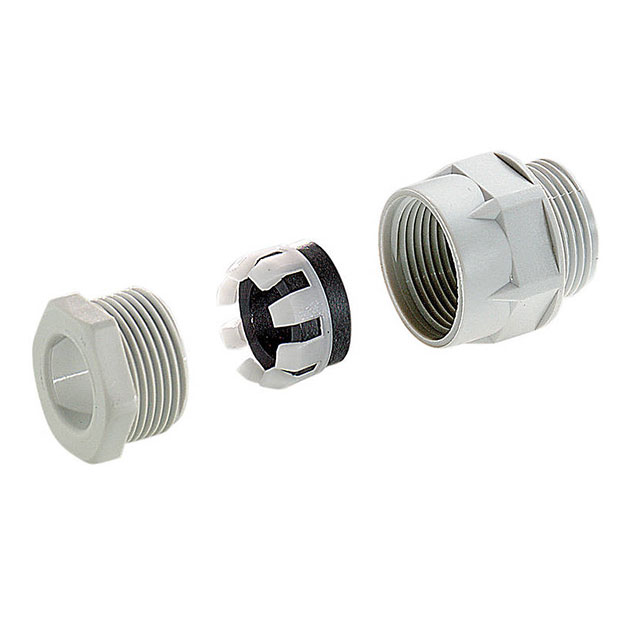

CABLE GLAND 6-8MM M16 POLYAMIDE

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 6-8MM M16 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	12152000

Color	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	0.433 in
Thread Length	11 mm
Thread Size	M16x1.5
Type	Cable Gland

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Color	Thread Length	Thread Length	Ingress Protection	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Bopla Enclosures 12152300	Cable Gland	100 °C	-30 ░C	14 mm	0.551 "	Gray	0.433 in	11 mm	IP65 - Dust Tight Water Resistant	M20x1.5	12 mm	0.472 in	Polyamide (PA) Nylon
Bopla Enclosures 12152500	Cable Gland	100 °C	-30 ░C	24 mm	0.945 in	Gray	0.433 in	11 mm	IP65 - Dust Tight Water Resistant	M32x1.5	18.01 mm	0.709 in	Polyamide (PA) Nylon
Bopla Enclosures 12152400	Cable Gland	100 °C	-20 C			Gray	0.433 in	11 mm	IP65 - Dust Tight Water Resistant	M25x1.5	14 mm	0.551 in	Polyamide (PA) Nylon	0.709 in	18.01 mm
Bopla Enclosures 12152100	Cable Gland	100 °C	-20 C			Gray	0.433 in	11 mm	IP65 - Dust Tight Water Resistant	M20x1.5	8 mm	0.315 in	Polyamide (PA) Nylon	0.394 "	10 mm
Bopla Enclosures 12152200	Cable Gland	100 °C	-30 ░C			Gray	0.433 in	11 mm	IP65 - Dust Tight Water Resistant	M20x1.5	10 mm	0.394 in	Polyamide (PA) Nylon	0.472 in	12 mm
Bopla Enclosures 12152000	Cable Gland	100 °C	-20 C			Gray	0.433 in	11 mm	IP65 - Dust Tight Water Resistant	M16x1.5	6 mm	0.236 in	Polyamide (PA) Nylon	0.315 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 1.58

General part information

Cable Gland Polyamide (PA), Nylon M16x1.5 Gray
