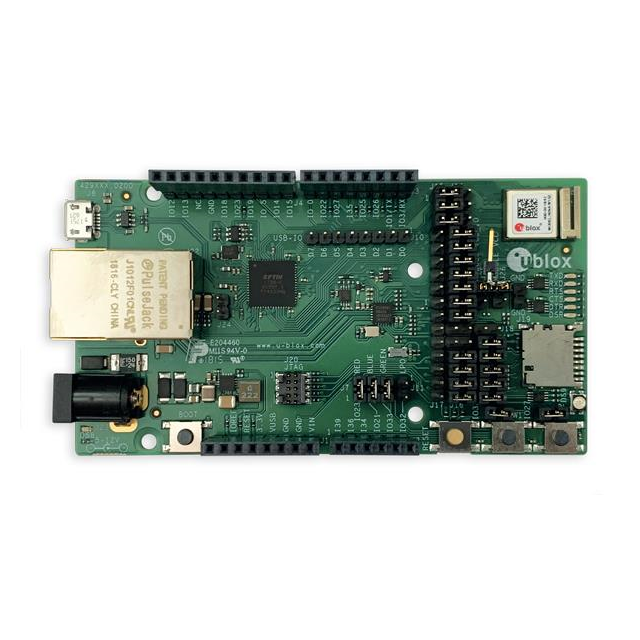

EVK-NINA-W152

Active

u-blox

EVK FOR NINA-W152 CONNECTIVITY S

Search across all available documentation for this part.

Active

u-blox

EVK FOR NINA-W152 CONNECTIVITY S

Technical Specifications

Parameters and characteristics for this part

Specification	EVK-NINA-W152

For Use With/Related Products	NINA-W152, ESP32
Frequency	2.4 GHz
Supplied Contents	Cable(s), Board(s)

Part	Current - Transmitting [Min]	Current - Transmitting [Max]	Frequency [Max]	Frequency [Min]	RF Family/Standard	Mounting Type	Protocol	Modulation	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving [Min]	Current - Receiving [Max]	Package / Case	Data Rate	Power - Output	For Use With/Related Products	Frequency	Supplied Contents	Memory Size [custom]	Memory Size [custom]
u-blox NINA-W152-02B	60 mA	150 mA	2.5 GHz	2.4 GHz	Bluetooth WiFi	Surface Mount	802.11b/g/n Bluetooth v4.2	CCK DSSS GFSK OFDM QDPSK QPSK	Integrated Stamped Metal	3.6 V	3 V	GPIO SPI UART	85 °C	-40 °C	50 mA	110 mA	36-SMD Module	72 Mbps	15 dBm
u-blox EVK-NINA-W152																				ESP32 NINA-W152	2.4 GHz	Board(s) Cable(s)
u-blox NINA-W152-04B	120 mA	170 mA	2.48 GHz	2.4 GHz	Bluetooth General ISM > 1GHz WiFi	Surface Mount	802.11b/g/n Bluetooth v4.2	CCK DSSS OFDM	Integrated Chip	3.6 V	3 V	SDIO SPI UART	85 °C	-40 °C	110 mA	125 mA	36-SMD Module	54 Mbps	18 dBm				2 MB	0.5 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.00

General part information

NINA-W1 ESP32, NINA-W152 Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode 2.4GHz Evaluation Board
