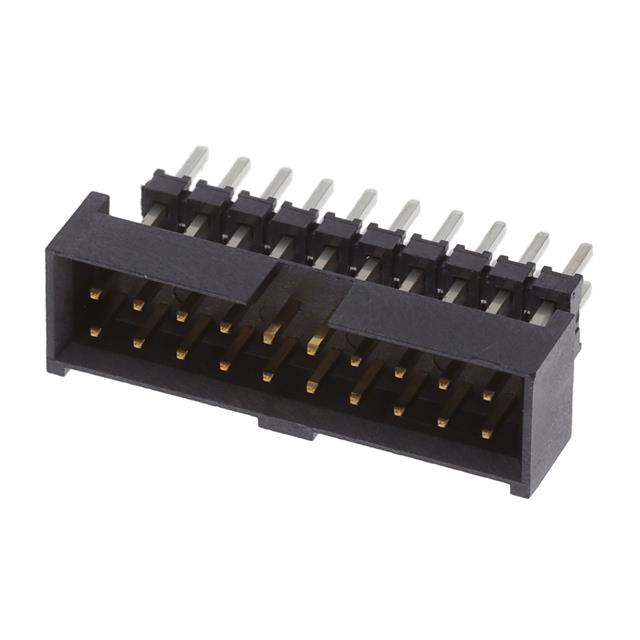

ZLTMM-110-73-L-D-345

Active

Samtec Inc.

2.00 MM SHROUDED VARIABLE STACK

Search across all available documentation for this part.

Active

Samtec Inc.

2.00 MM SHROUDED VARIABLE STACK

Technical Specifications

Parameters and characteristics for this part

Specification	ZLTMM-110-73-L-D-345

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.156 in
Contact Length - Post	3.96 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	8.76 mm
Insulation Height [z]	0.345 "
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	12.09 mm
Overall Contact Length	0.476 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Shrouding	Contact Type	Fastening Type	Features	Connector Type	Insulation Material	Termination	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Overall Contact Length	Insulation Color	Insulation Height [z]	Insulation Height [z]
Samtec Inc. ZLTMM-110-73-G-D-387	0.114 in	2.9 mm	Phosphor Bronze	3 µin	0.076 µm	2	Through Hole	3.05 mm	0.12 in	Square	Shrouded - 4 Wall	Male Pin	Push-Pull	Keying Slot	Elevated Header	Nylon Polyamide (PA)	Solder	Gold	20	0.51 µm	20 µin	-55 °C	125 °C	0.079 in	2 mm	All	Gold	0.079 in	2 mm	12.09 mm	0.476 in	Black
Samtec Inc. ZLTMM-110-73-L-D-345	0.156 in	3.96 mm	Phosphor Bronze			2	Through Hole	3.05 mm	0.12 in	Square	Shrouded - 4 Wall	Male Pin	Push-Pull	Keying Slot	Elevated Header	Nylon Polyamide (PA)	Solder	Tin	20	0.25 çm	10 çin	-55 °C	125 °C	0.079 in	2 mm	All	Gold	0.079 in	2 mm	12.09 mm	0.476 in	Black	8.76 mm	0.345 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 20 position 0.079" (2.00mm)
