PL155AC-221

Active

Cinch Connectivity Solutions Trompeter

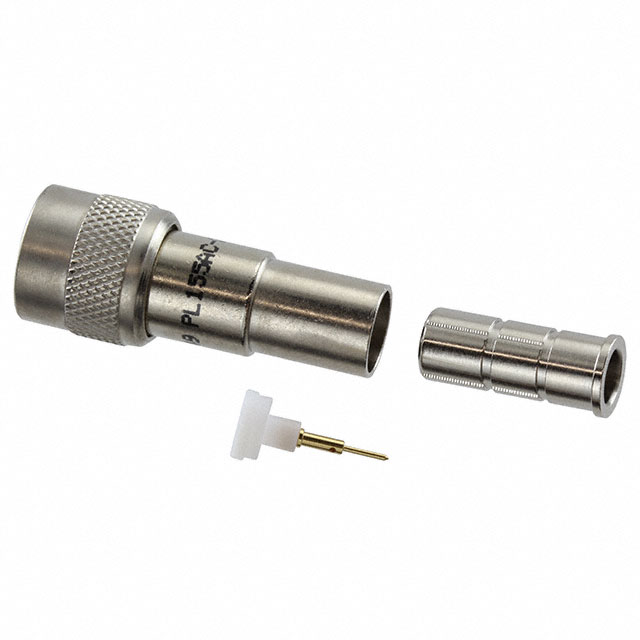

CONN TRS PLUG STR CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PL155AC-221

Body Finish	Nickel
Body Material	Brass
Cable Group	Raychem 10614
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TRS, Twinaxial/Triaxial
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Crimp
Fastening Type	Bayonet Lock
Features	Three Lug
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	400 V

PL155 Series

Part	Includes	Fastening Type	Body Material	Body Finish	Frequency - Max [Max]	Center Contact Plating	Housing Color	Cable Group	Number of Ports	Center Contact Material	Mounting Type	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Mating Cycles	Connector Style	Shield Termination	Voltage Rating	Contact Termination
Cinch Connectivity Solutions Trompeter PL155AC-212	1 Connector 1 Strain Relief	Bayonet Lock	Brass	Nickel	500 MHz	Gold	Silver	Raychem 2524E0114	1	Beryllium Copper	Free Hanging (In-Line)	Plug Male Pin (Concentric)	Three Lug	-65 ░C	200 °C	Non-Constant	500	TRS Twinaxial/Triaxial	Crimp	400 V	Crimp
Cinch Connectivity Solutions Trompeter PL155AC-303	1 Heat Shrink 2 pcs - 1 Connector	Bayonet Lock	Brass	Nickel	500 MHz	Gold	Silver	Raychem 7528A5314	1	Beryllium Copper	Free Hanging (In-Line)	Plug Male Pin (Concentric)	Three Lug	-65 ░C	200 °C	Non-Constant	500	TRS Twinaxial/Triaxial	Crimp	400 V	Crimp
Cinch Connectivity Solutions Trompeter PL155AC-306	1 Connector 1 Strain Relief	Bayonet Lock	Brass	Nickel	500 MHz	Gold	Silver	M17/134-00002 TRC-50-2	1	Beryllium Copper	Free Hanging (In-Line)	Plug Male Pin (Concentric)	Three Lug	-65 ░C	200 °C	Non-Constant	500	TRS Twinaxial/Triaxial	Crimp	400 V	Crimp
Cinch Connectivity Solutions Trompeter PL155AC-221	1 Heat Shrink 2 pcs - 1 Connector	Bayonet Lock	Brass	Nickel	500 MHz	Gold	Silver	Raychem 10614	1	Beryllium Copper	Free Hanging (In-Line)	Plug Male Pin (Concentric)	Three Lug	-65 ░C	200 °C	Non-Constant	500	TRS Twinaxial/Triaxial	Crimp	400 V	Crimp
Cinch Connectivity Solutions Trompeter PL155FL-33		Bayonet Lock	Brass	Nickel	500 MHz	Gold	Silver	TRC-75-1	1	Beryllium Copper	Free Hanging (In-Line)	Plug Male Pin (Concentric)	Four Lug	-65 ░C	200 °C	Non-Constant		TRS Twinaxial/Triaxial	Wrench Clamp	400 V	Solder
Cinch Connectivity Solutions Trompeter PL155ACFL-201	1 Heat Shrink 2 pcs - 1 Connector	Bayonet Lock	Brass	Nickel	500 MHz	Gold	Silver	M17/176-00002	1	Beryllium Copper	Free Hanging (In-Line)	Plug Male Pin (Concentric)	Four Lug	-65 ░C	200 °C	Non-Constant	500	TRS Twinaxial/Triaxial	Crimp	400 V	Crimp
Cinch Connectivity Solutions Trompeter PL155FL-47		Bayonet Lock	Brass	Nickel	500 MHz	Gold	Silver	M17/176-00002	1	Beryllium Copper	Free Hanging (In-Line)	Plug Male Pin (Concentric)	Four Lug	-65 ░C	200 °C	Non-Constant	500	TRS Twinaxial/Triaxial	Wrench Clamp	400 V	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.46
		10	$ 31.05
		30	$ 29.71
		50	$ 28.98

Description

General part information

PL155 Series

TRS, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
