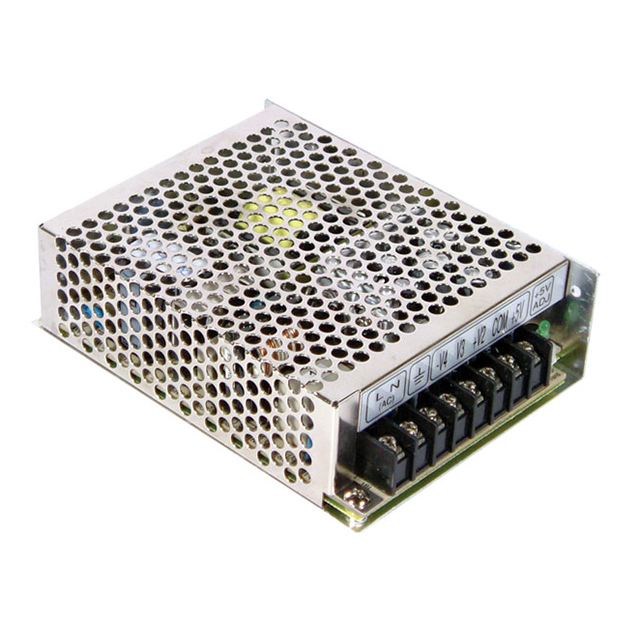

RQ-65B
ActiveMEAN WELL USA Inc.
AC/DC CNVRTR 5V 12V -5V -12V 63W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RQ-65B
ActiveMEAN WELL USA Inc.
AC/DC CNVRTR 5V 12V -5V -12V 63W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RQ-65B |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 6 A |
| Current - Output 2 | 2 A |
| Current - Output 3 | 500 mA |
| Current - Output 4 | 500 mA |
| Efficiency | 76 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 63 W |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 373 VDC |
| Voltage - Input [Min] | 88 VAC, 125 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 29.10 | |
| 5 | $ 27.42 | |||
| 10 | $ 26.72 | |||
| 25 | $ 25.83 | |||
Description
General part information
RQ-65 Series
Enclosed AC DC Converters 4 Output 5V 12V -5V -12V 88 ~ 264 VAC, 125 ~ 373 VDC Input
