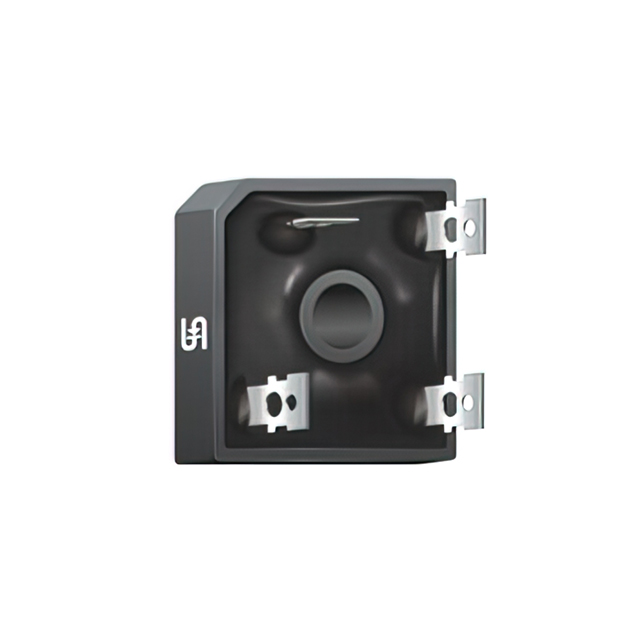

GBPC4008

Active

Taiwan Semiconductor Corporation

40A, 800V, STANDARD BRIDGE RECTIFIER

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

40A, 800V, STANDARD BRIDGE RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	GBPC4008

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, GBPC
Supplier Device Package	GBPC
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	800 V

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package	Technology	Diode Type	Mounting Type	Current - Average Rectified (Io)
Taiwan Semiconductor Corporation GBPC4008	1.1 V	800 V	-55 °C	150 °C	4-Square GBPC	10 µA	GBPC	Standard	Single Phase	Chassis Mount	40 A
Taiwan Semiconductor Corporation GBPC4008M	1.1 V	800 V	-55 °C	150 °C	4-Square GBPC	10 µA	GBPC	Standard	Single Phase	Chassis Mount	40 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 800 V Chassis Mount GBPC
