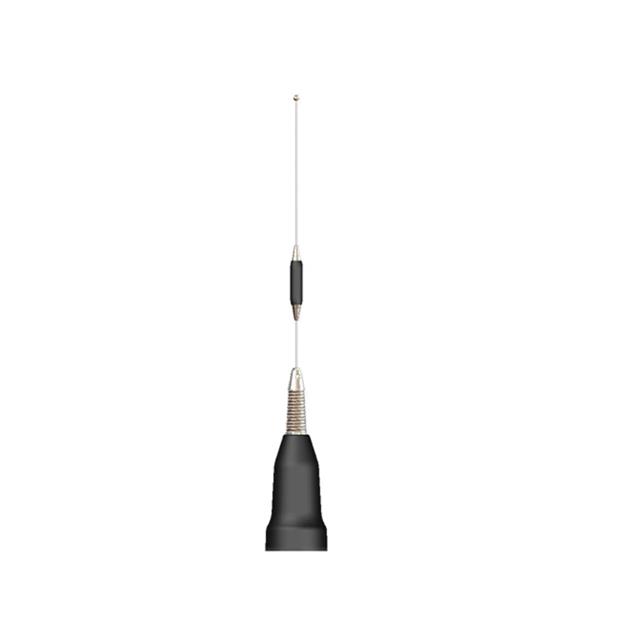

WPD136M6C-001

Active

TE Connectivity Raychem Cable Protection

RF ANT 155/450MHZ WHIP STR 20"

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RF ANT 155/450MHZ WHIP STR 20"

Technical Specifications

Parameters and characteristics for this part

Part	Frequency Group	Frequency (Center/Band)	Number of Bands	Applications	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Termination	Mounting Type	Gain	Height (Max) [Max]	Height (Max)	Antenna Type	VSWR
TE Connectivity Raychem Cable Protection WPD136M6C-001	UHF VHF	155 MHz 450 MHz 815 MHz	3	TETRA	136 MHz 380 MHz 760 MHz	174 MHz 520 MHz 870 MHz	100 W	NMO	Base Mount	0.2 dBi 4.8 dBi 8.1 dB	20 in	508 mm	Whip Straight	2.5
TE Connectivity Raychem Cable Protection WPD136M6BR-001	UHF VHF	155 MHz 450 MHz 815 MHz	3	TETRA	136 MHz 380 MHz 760 MHz	174 MHz 520 MHz 870 MHz	100 W	Connector NMO	Base Mount	0.2 dBi 4.8 dBi 8.1 dB	20 in	508 mm	Whip Straight	2.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Whip Antenna, Triple Band, Cellular / UHF / VHF, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
